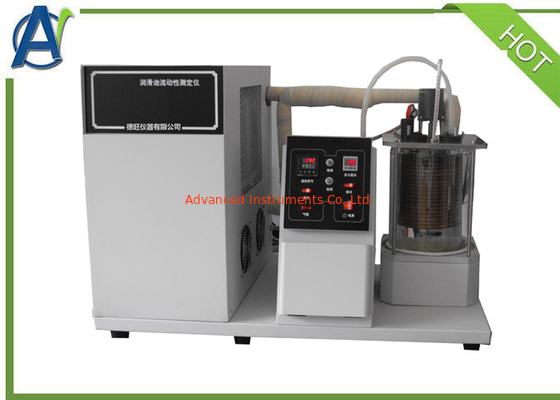

Name: DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method
Brand: Advanced Instruments Co.,Ltd
SKU: AIC-51568
Availability: InStock

Home Products Lubricating Oil and Lubricating Grease Analysis

DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method

Product Details:

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	AIC-51568

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Hardboard
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Power Supply:	AC220V /50HZ	Cooling Method:	Double Compressor
Test Standard:	DIN 51568	Temperature Control Method:	Omron
Temperature Control Range:	RT~60 ºC	Working Position:	2 Units
Color:	Grey	Material Of Heater:	Stainless Steel
Total Power:	1000W	Pressure Range:	980±10PA

Summary
This Flow Ability Test Apparatus is applicable to determine ability to flow of lubricating oil.
The operating principle is to measure the rising speed of lubricating oil in the U-shaped pipe under constant pressure and specified low temperature conditions, which is expressed by the temperature when the rising speed under such conditions is 10mm/min.

I. Main technical features
1. The Flow Ability Test Apparatus adopts Double compressor cascade refrigeration ensures the supply of cooling capacity;
2. Microcomputer temperature controller, digital display, accuracy ± 0.2 ºC PT100 sensor;
3. Glass Dewar bottle for cold bath, good heat preservation effect;
4. Split structure to reduce the damage caused by instrument vibration;
5. The Flow Ability Test Apparatus provides Stainless steel heater;
6. Evaporator adopts copper chrome plated coil;
7. The back of the Dewar bottle is provided with sunlight for easy observation;
8. Stainless steel clamping system can quickly clamp the test tube;
9. Special glass test tube, meeting the standard requirements;
10. The Flow Ability Test Apparatusdisplay pressure digitally.

II. Main technical specifications

1	Power supply	AC(220±10%)V, 50Hz
2	Applicable standard	DIN 51568, GB/T12578
3	Cooling method	Double compressor
4	Temperature range	RT~60ºC
5	Temperature controlling	Digital PID
6	Total power	1KW
7	Pressure range	980±10PA

DIN 51568 Lubricating Oils Flow Ability Test Apparatus by U-tube Method
