    Product Details:

    Place of Origin: China
    Brand Name: AI
    Certification: ISO
    Model Number: KV-R5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Hardboard
    Delivery Time: 20 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Standards: GB/T265, ASTM D445, ISO3104,DIN51366 Test Method: Capillary Viscometer
    Temperature Range: Ambient To 100.0℃ Bath Capacity: 20L
    Power Supply: AC(220±10%)V, 50Hz Power Consumption: 2.5KW
    Warranty: 1 Year Working Units: 4

    ASTM D445 Manual and Cheap Kinematic Viscosity Tester

    Summary

    This instrument is suitable to determine kinematic viscosity of petroleum products.



    Principle:Under certain constant temperature,measure flow time of liquid with specified volume through one calibrated glass capillary(reverse flow type),multiplication of capillary constant and flow time is the kinematic viscosity of this liquid under that temperature.


    I. Main technical features

    1.The heating bath is made of glass,which is easy to observe

    2.Integrated structure,easy operation

    3.Two layers bath preserve heat effectively,inner bath Φ300×300mm

    4.4 samples can be tested simultaneously as parallel test

    5.Big power solid relay controls output,no voltage leakage

    6.There is stirrer above electronic heating bath

    7.Stainless steel heater

    8.The temperature controller displays heating status

    9.It’s made by cold-rolled sheet,surface treated by Electrostatic spraying.It’s corrosion resisting and easy to clean.

    10.Safety device can prevent over-heat and low liquid level

    11.It’s very convenient to contact control box

    12.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.


    II. Main technical specifications
    1 Applicable standards GB/T265 ASTM D445 ISO3104 DIN51366
    2 Temperature controlling method imported PID digital temperature controller
    3 Temperature controlling accuracy ±0.1℃
    4 Heating method electrical heating tube
    5 Total power 2.5KW
    6 Working unit 4 tubes
    7 Power supply AC220V/50Hz

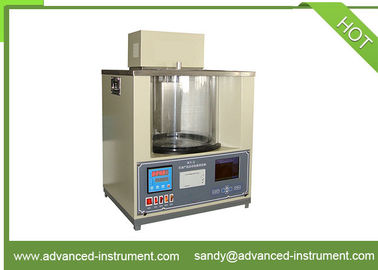

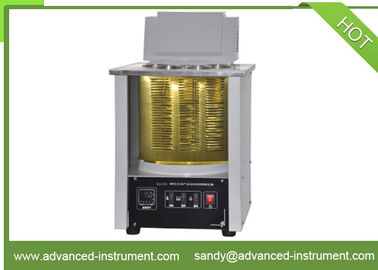

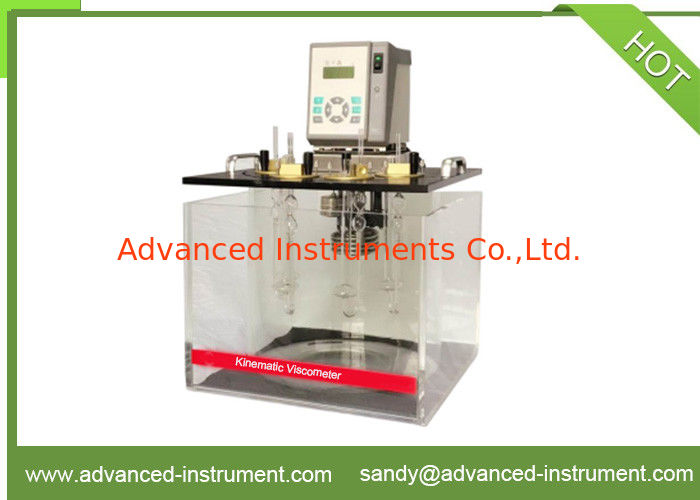

    Picture of KV-R5 Cheap Manual Kinematic Viscosity Tester
