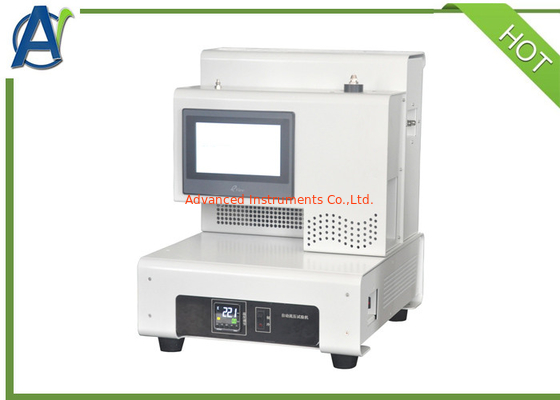

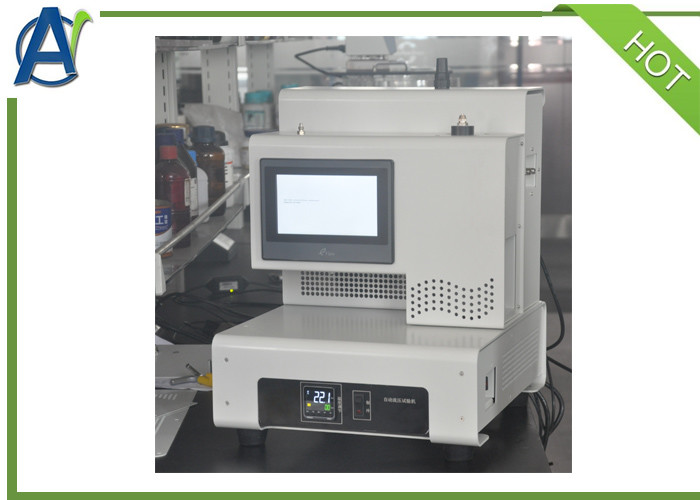

DIN 51805 Lubricating Greases Flow Pressure Test Apparatus by Kesternich

DIN 51805 Lubricating Greases Flow Pressure Test Apparatus by Kesternich

    • DIN 51805 Lubricating Greases Flow Pressure Test Apparatus by Kesternich
    • DIN 51805 Lubricating Greases Flow Pressure Test Apparatus by Kesternich
    • DIN 51805 Lubricating Greases Flow Pressure Test Apparatus by Kesternich
  • DIN 51805 Lubricating Greases Flow Pressure Test Apparatus by Kesternich

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: AIC-51805

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Hardboard
    Delivery Time: 25 days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Test Standard: DIN 51805 Power Supply: AC220V 50Hz
    Operation: Automatic Control: Touch Screen
    Temperature Control Range: Room Temperature~40ºC Pressure Display: Digital
    Refrigeration Method: Semiconductor Total Power: 500W
    Pressure Range: 0~5000mbar Color: White
    Language: English

    Summary

    DIN 51805 Determination of Flow Pressure of Lubricating Greases by Kesternich Technique
    Central lubrication systems typically offer reduced maintenance costs and increased reliability over conventional grease application methods. To start the grease flowing, pressure is applied to the system - lower temperatures normally require higher pressures than higher temperatures. This test determines the pressure required to start grease flowing at low temperatures. The grease is packed into the test nozzle, brought to the test temperature and pressure is applied. The pressure is increased in 30 second intervals until grease passes through the nozzle. Reported is the flow pressure in mbar. Please include the test temperature.



    I,Main technical characteristics

    1. This Flow Pressure Test Apparatus is manufactured according to the new standard and does not need glass accessories consumables;
    2. Automatically select the expected boost mode of the third gear according to the standard requirements;
    3.This Flow Pressure Test Apparatus
    can automatically control and measuring pressure;
    4. This Flow Pressure Test Apparatus
    adopts large LCD touch operation;
    5. Semiconductor cooler, fast cooling speed;
    6. Realize full automation to replace the original manual and time-consuming instruments;
    7. Microcomputer temperature controller, PT100 temperature sensor, high precision.



    II,Main technical parameters and index

    1 Applicable standard DIN 51805
    2 Temperature control method digital temperature controller
    3 Temperature control range room temperature~40ºC
    4 Temperature control accuracy ±0.1ºC
    5 Pressure display digital pressure gauge
    6 Pressure adjusting Automatic
    7 Refrigeration method semiconductor
    8 Total power 500W
    9 Pressure range 0~5000mbar
    10 Power supply AC220V 50Hz



    DIN 51805 Lubricating Greases Flow Pressure Test Apparatus by Kesternich
