ASTM D323 Gasoline And Crude Oil Vapour Pressure Testing Equipment

Home Products Petroleum Products Testing Equipment

ASTM D323 Gasoline And Crude Oil Vapour Pressure Testing Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	AI
Certification:	ISO
Model Number:	VPT-R4

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Hardboard
Delivery Time:	20 days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Standards:	GB/T8017, ASTM D323 ,ISO3007, NFM07007	Test Method:	Reid Method Vapour Pressure Test
Power Consumption:	1.5KW	Warranty:	1 Year
Working Units:	2 Oxygen Bombs	Temperature Controlling:	37.8±0.1℃

ASTM D323 Gasoline and Crude Oil Vapour Pressure Testing Equipment

Summary

This test equipment is mainly used to determine vapour pressure of gasoline, volatile crude oil and other volatile petroleum products. It can not be used to determine the vapor pressure of LGP.

Filling cooled oil sample into gasoline chamber,and connect with air under certain temperature.

I. Main technical features

1.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.

2.VPT-R4 Vapour Pressure Test Equipment is made by cold-rolled sheet,surface treated by Electrostatic spraying.It’s corrosion resisting and easy to clean.

3.It adopts butt welding technology,so there isn’t welding spot on the surface.It’s beautiful and clean.

4.It adopts imported pressure transmitter,with high accuracy of pressure displaying

5.Complete stainless steel inner water tank can prevent rust very well.

6.Imported quick connector is convenient and sealed tightly.

II. Main technical specifications

1	Applicable standards	GB/T8017 ASTM D323 ISO3007 NFM07007
2	Temperature controlling method	imported PID digital temperature controller
3	Temperature controlling accuracy	37.8±0.1℃
4	Oscillating mode	horizontal automatic,no need manual operation
5	Working units	two oxygen bombs
6	Pressure correction	precise pressure adjust device is connected externally,and micro-adjusting function is set inside.
7	Connection mode	imported stainless steel quick connector makes no leakage
8	Power consumption	1.5KW

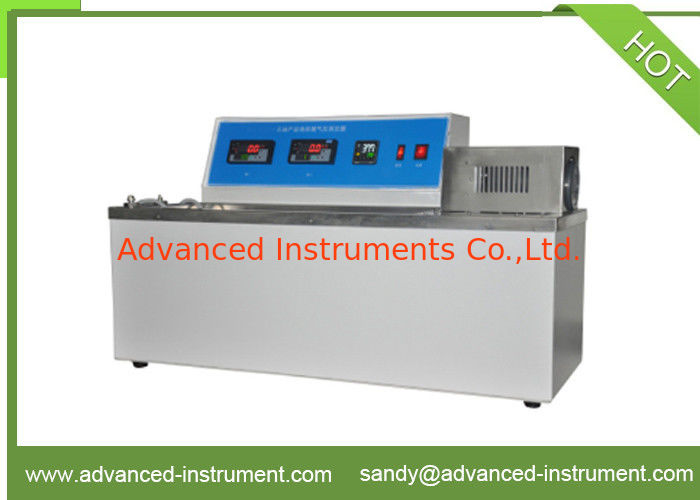

Photos of VPT-R4 Vapour Pressure Test Equipment

ASTM D323 Gasoline And Crude Oil Vapour Pressure Testing Equipment
