Place of Origin: | CHINA |
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-4170 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Hardboard |
Delivery Time: | 25 days |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 50 sets per month |
Test Standard: | ASTM D4170 | Power Supply: | AC220V 50Hz |
---|---|---|---|
Oscillating Mode: | Motor Dring | Oscillating Frequency: | 30Hz |
Oscillating Arc: | 12º | Bearing Load: | 2450N |
Running Time: | 22 Hours | Display: | Digital |
Overall Power: | 2500W | Color: | White |
Frequency Control: | Frequency Converter | Total Power: | 300W |
Significance and Use

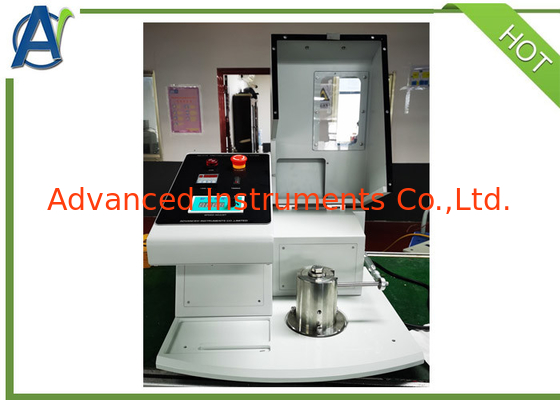

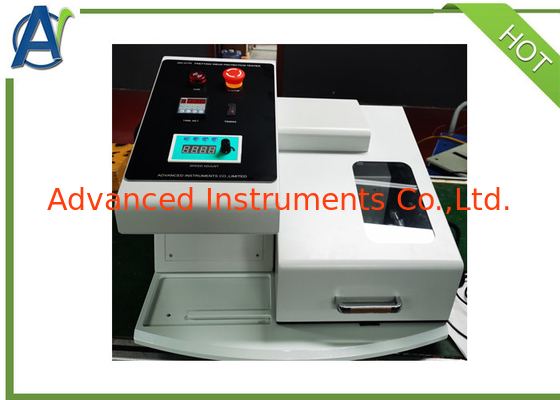

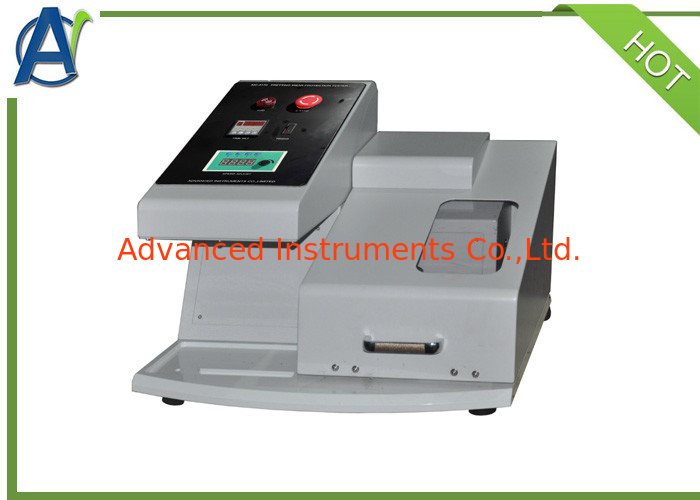

This Oscillating Wear Test Instrument is used to evaluate the property of lubricating greases to protect oscillating bearings from fretting wear. This method, used for specification purposes, differentiates among greases allowing low, medium, and high amounts of fretting wear under the prescribed test conditions. The test has been used to predict the fretting performance of greases in wheel bearings of passenger cars shipped long distances.5 Test results do not necessarily correlate with results from other types of service. It is the responsibility of the user to determine whether test results correlate with other types of service.
Keywords:
Fafnir test; false brinelling; fretting corrosion; fretting wear; friction oxidation; grease; lubricating grease; oscillating wear test; wear;ICS Number Code 75.100 (Lubricants, industrial oils and related products)
I. Main technical features
1. This Oscillating Wear Test Instrument has two sets of standard thrust ball test bearings, inner diameter 16mm ± 0.025mm, outer diameter 35.69 ± 0.025mm;
2. The frequency converter controls the motor to improve the control frequency accuracy and digital display of the operating frequency;
3. High precision spring guide cylinder, 31.75mm ± 0.25mm long, 23.02mm ± 0.05mm outer diameter, 13.614mm ± 0.013mm inner diameter;

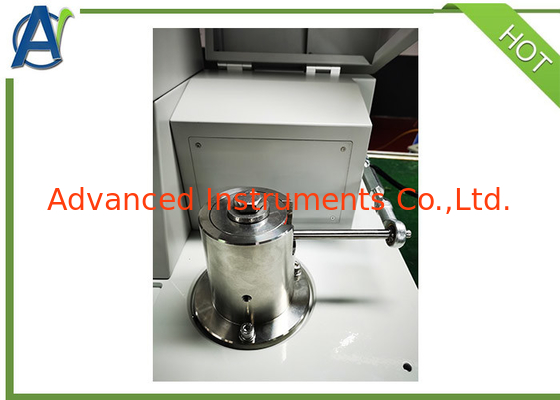

4. Oscillating bearing seat is equipped with fixing screws;
5. This Oscillating Wear Test Instrument is supplied with a set of standard fixtures;
6. Digital display time controller, when the test time reaches the buzzer prompt.
II,Main technical parameters and index
1 | Power supply | AC(220±10%)V, 50Hz |
2 | Oscillating mode | Motor diring |
3 | Oscillating arc | 12º |
4 | Oscillating frequency | 30Hz |
5 | Bearing load | 2450N |
6 | Running time | 22 hours |
7 | Frequency control | Frequency converter |
8 | Total power | 300W |
9 | Applicable standard | SH/T 0716,ASTM D4170 |
