Place of Origin: | CHINA |
Brand Name: | AI |
Certification: | iso |
Model Number: | OST-R4 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Hardboard |
Delivery Time: | 20 days |
Payment Terms: | L/C, T/T, Western Union |
Test Standard: | ASTM D3241 And GB/T9169 | Test Method: | JFTOT |
---|---|---|---|
Test Temperature: | 100℃~380℃±1℃ | Pressure Difference: | 0~340mmHg |
Pressure System: | 500psi±50psi | Sample Quantity: | 600ml |
Controlling Mode: | Computer | Warranty: | 1 Year |
ASTM D3241 JFTOT Thermal Oxidation Stability Apparatus
Introduction:
It adopts multi advanced technology and make the test process automatic:
Specifications:
Test temperature | 100℃~380℃±1℃ |
Pressure difference | 0~340mmHg |
Temperature range | ambient~150℃ |
Pressure system | 500psi±50psi |
Sample quantity | 600ml |
Flow of cool water | 38±8L/H,Pressure of cool water:0.1~0.4Mpa |
Measuring accuracy of pressure difference | 0.1~0.4Mpa |
Resolution of pressure difference displaying | 0.1mmHg |
Flow of fuel oil | 20 drops/9±1 second |
Display mode | touch screen |
Controlling mode | Micro-computer |
Power supply | AC220V 50Hz |
Ambient temperature | 10℃~40℃ |
Relative humidity | <85% |
Test standard | ASTM D3241 |
Test method | JFTOT |
Test sample | Jet fuel,aviation turbine fuel |

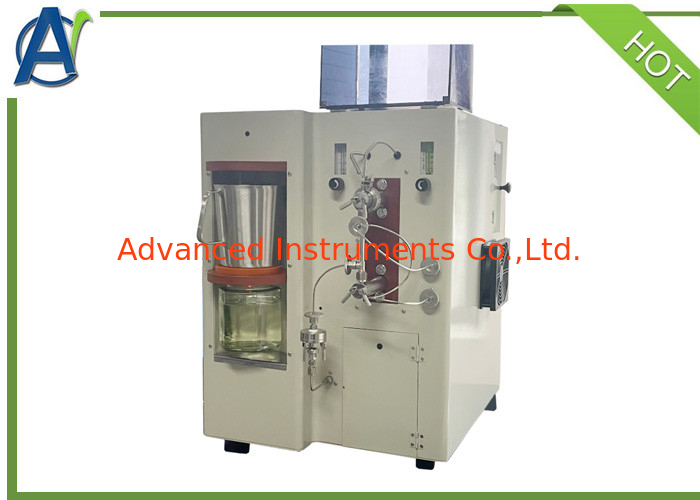

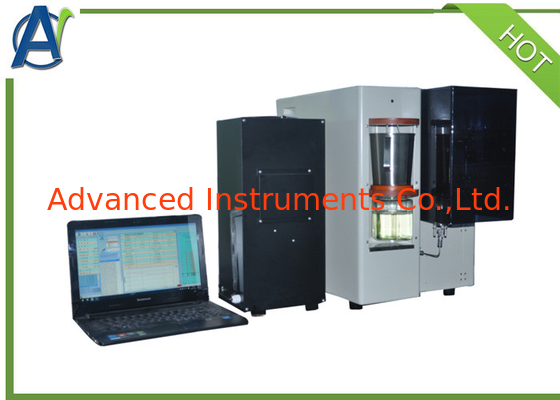

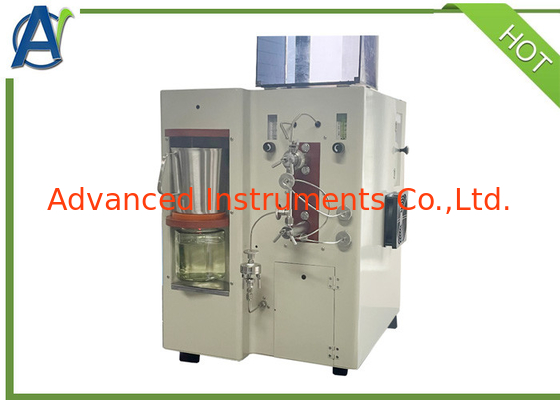

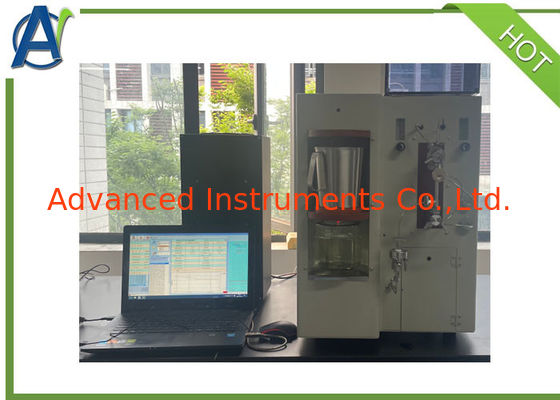

Photo of JFTOT Thermal Oxidation Stability Tester
