Automatic Aniline Point Test Apparatus by ASTM D611 and ISO 2977

Automatic Aniline Point Test Apparatus by ASTM D611 and ISO 2977

    • Automatic Aniline Point Test Apparatus by ASTM D611 and ISO 2977
    • Automatic Aniline Point Test Apparatus by ASTM D611 and ISO 2977
    • Automatic Aniline Point Test Apparatus by ASTM D611 and ISO 2977
    • Automatic Aniline Point Test Apparatus by ASTM D611 and ISO 2977
  • Automatic Aniline Point Test Apparatus by ASTM D611 and ISO 2977

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: AIC-262A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Hardboard
    Delivery Time: 20 days
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Test Standard: ASTM D611,ISO 2977 Power Supply: AC 220V±10%, 50 Hz
    Temp.range: 40℃ ~ 170℃ Display: VFD Plasma Fluorescent Display
    Warranty: 1 Year Color: Grey
    Temperature Sensor: Pt 100 Platinum Resistance Power Consumption: Total Power Consumption

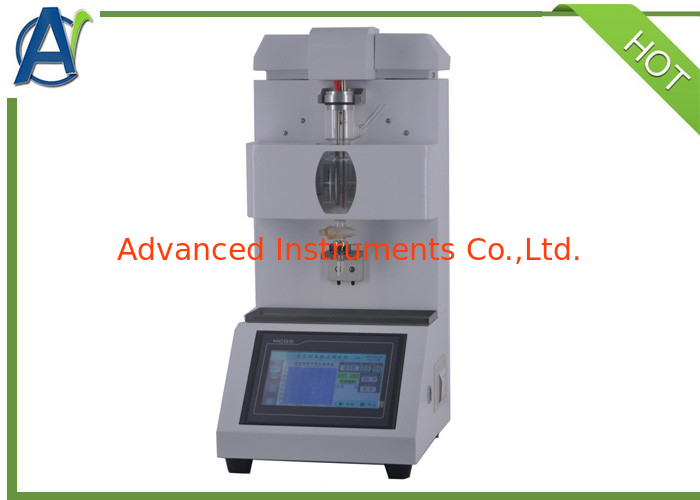

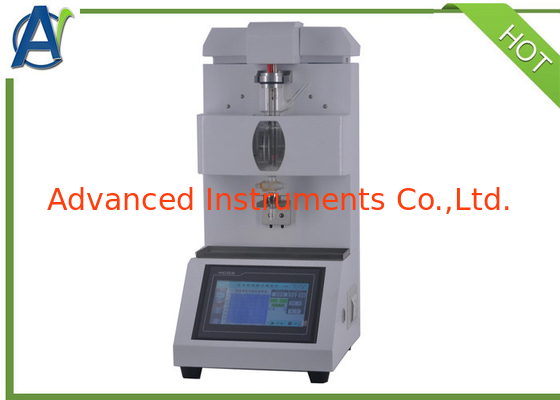

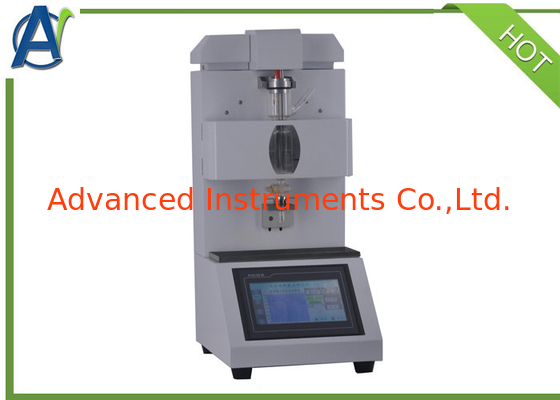

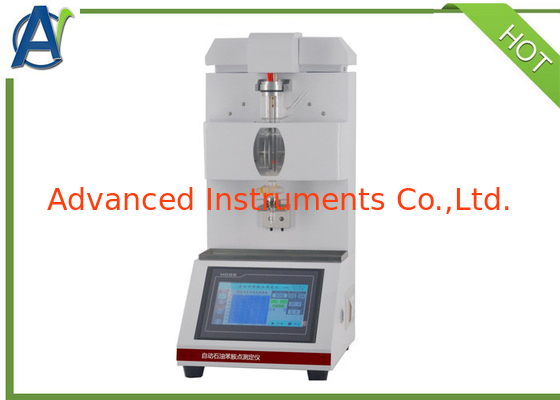

    Automatic Aniline Point Tester


    Introduction:
    The Aniline Point Test Apparatus is used to determine the aniline point of petroleum products and hydrocarbon solvents, as well as the mixed aniline point of the aforementioned products when the sample's aniline point is lower than the crystallization temperature of aniline in the aniline-sample mixture. It is suitable for determining the bubble point, which is higher than the sample's cloud point, of transparent samples with initial boiling points higher than room temperature and aniline points lower than the crystallization temperature of aniline in the aniline-sample mixture.

    I.Main Features

    ◆Four test modes of AIC-262A Aniline Point Test Apparatus:

      Standard measurement mode (SP);

      Rapid measurement mode (QP);

      Search measurement mode (SR);

      Special oil sample measurement mode (TP)

    ◆Automatic temperature rise,heat preservation,temperature reduction, dimming, automatic display and save test results

    ◆ With self-diagnosis and self-protection procedures

    ◆ Can store 99 sets of test data

    ◆ With print interface, RS-232C interface

    ◆ Display content: date, clock; sample number (sample number) test mode;sample temperature;Light receiving amount; fault content

    ◆Print content, input before printing: sample number, the printed content is as follows:

      1) Sample date;

      2) Sample number;

      3) Test mode;

      4) Expected aniline point (not printed in "SR" mode);

      5) Measured aniline point;

      6) Detection method


    II. Main technical specifications
    Item Specification
    Model AIC-262A Automatic Aniline Point Tester
    Measuring range 40℃ ~ 170℃
    Accuracy Light petroleum ±0.2℃;Dark petroleum ±0.4℃
    Temperature sensor Pt 100 Platinum resistance
    Display screen VFD Plasma fluorescent display
    Output Parallel print interface(Printer UP-A24P);RS232 communication port
    Power supply AC220V 50HZ
    Total power consumption 100W
