|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 Set|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Test Standard:||ASTM D3829,ASTM D4684,GB/T9171||Power Supply:||AC 220V, 50 Hz|
|Test Method:||Mini Rotary Viscometer||Temperature Control Range:||-5℃～-40℃|
|Refrigeration Method:||Imported Air Compressor||Power Consumption:||1200W|

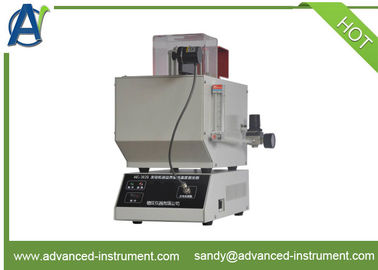

This Mini Rotary Viscometer is suitable to measure borderline pumping temperature,yield stress at low temperature and apparent viscosity of engine oils.The temperature controlling range is -5℃～-40℃.
All test procedures are automatically controlled by computer.
1.Temperature controlling range of borderline pumping temperature tester:-5℃～-40℃±0.1℃.
2.Multipoint temperature correction,high temperature measuring accuracy.
3.Semi conductor refrigeration,fast and precise.
4.Computer monitors temperature,cycle and rotor motion.
5.This MRV appratus has function of delay start,which is convenient for user to control test process flexibly.
6.Upgraded pulley assembly improves its stability and sensibility,tested by photoelectric sensor.
7.5 rotors can test simultaneously.
8.Rotor has thermal transparent perspex cover
9.Micro computer controller,Window operation system,English interface
10.Program automatically conducts nonlinear curve temperature control,and measure yield stress and apparent viscosity.
11.Temperature control curve can be made as per user’s requirement.
12.This Mini rotary viscometer can calibrate and store viscometer constant.
13.Test result can be saved and printed.
14.This borderline pumping temperature apparatus can calculate and print out borderline pumping temperature of “gas resistant type” and “flow restricted type”.
15.It is equipped with special low temperature constant equipment.
16.It is equipped with new designed defrosting system.
ASTM D3829,ASTM D4684,GB/T9171
imported air compressor
Temperature controlling method
programmable temperature controlling
electric heating pipe
main unit 470*320*420mm³;
low temperature bath 360*650*660mm³
main unit 20KG;
low temperature bath:40KG
