ASTM D1401 Herschel Emulsifier Water Separability Testing Apparatus

ASTM D1401 Herschel Emulsifier Water Separability Testing Apparatus

    • ASTM D1401 Herschel Emulsifier Water Separability Testing Apparatus
    • ASTM D1401 Herschel Emulsifier Water Separability Testing Apparatus
    • ASTM D1401 Herschel Emulsifier Water Separability Testing Apparatus
  • ASTM D1401 Herschel Emulsifier Water Separability Testing Apparatus

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: WST

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Hardboard
    Delivery Time: 20 days
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Test Standard: GB/T7305,ASTM D1401, ISO6614 Test Temperature: Ambient~100℃
    Temp.controller: Imported PID Timing Metho: Digital Timer
    Total Power: 1500W Working Unit: 9
    Warranty: 1 Year Color: Grey

    Herschel Emulsifier Water Separability Test Apparatus





    The water separability apparatus is suitable to measure the water separability of Petroleum Oils and Synthetic Fluids.Fill certain amount of sample and distilled water,stir 5 minutes under certain temperature,record needed time for separation of emulsified liquid.After half hour or one hour,if the emulsified liquid doesn’t separate completely,or the emulsified layers doesn’t reduce 3mL or more,please record the volume of oil layer,water layer and emulsified layer at this moment.



    I.Main features

    1.It can measure water separability of petroleum oil,synthetic liquid and Herschel emulsifier.

    2.This equipment includes stainless steel frame,control box,tank,and the stirring vane can be moved in column up and down.It can display stirring speed digitally.

    3.Borosilicate glass tank,depth 300mm,fixed on the stainless steel rack with ceramic coating.

    4.Aluminized lid,multi rotation position,can put sample column.One locating device can put the column under the blade of sample stirrer,which can avoid breaking for wrong locating.

    5.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.

    6.Stirrer is installed on the electrical heating bath

    7.Heater is stainless steel

    8.Sample stirrer is electronic

    9.Digital speedometer can display stirring speed continuously.

    10.Electronic timer can be stopped after stirring for 5 minutes.

    11.Contact control box is very convenient.

    12.Borosilicate glass column with 100ml graduation.



    II.Technical specifications

    1 Applicable standards GB/T7305,ASTM D1401, ISO6614
    2 Temperature controlling method imported PID digital display temperature controller
    3 Temperature controlling accuracy ambient~100℃±0.1℃
    4 Heating method oil bath
    5 Timing method digital timer
    6 Total power 1500W
    7 Working unit 9 positions
    8 Power supply AC220V/50Hz

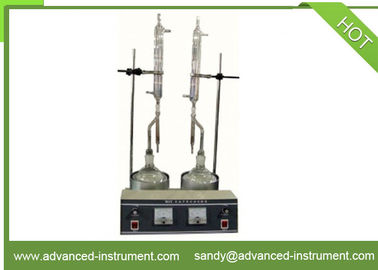

    Photo of Herschel Emulsifier Water Separability Testing Apparatus

    ASTM D1401 Herschel Emulsifier Water Separability Testing Apparatus
