|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Delivery Time:||20 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||20 sets per month|
|Standards:||GB/T12579,ASTM D892,ISO6247,NFT60129||Working Temp.:||Ambient~250℃|
|Heating Method:||Oil Bath||Power Supply:||AC220V ± 10%, 50Hz|
|Temp.controlle:||Imported PID||Warranty:||1 Year|
|Total Power:||5KW||Working Units:||4 Positions|
|Timing Method:||Digital Timer|

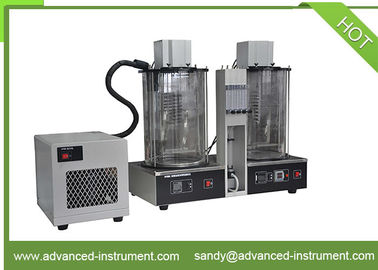

Foaming Tendency Apparatus Bath with Cooler
The tendency of oils to foam can be a serious problem in systems such as high-speed gearing, high-volume pumping, and splash lubrication. Inadequate lubrication, cavitation, and overflow loss of lubricant can lead to mechanical failure. This instrument is used in the evaluation of oils for such operating conditions.
1.This equipment in separate,including heating bath and precise flowmeter
2.The material of bath is high temperature resistant Borosilicate glass,Φ300×450mm.It fulfills the standard requirements.
3.Environmental oil bath heating can reduces the harm of smoke to peoples,and it also has high heat insulation effect.
4.Heater is stainless steel
5.Flow meter is highly precise with needle valve,0~94ml/min
6.Air filter has glass wool
7.Cooler is included.
8.Working temperature:ambient~250℃,with safety device for over-heated or low liquid level
9.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.
|1||Applicable standards||GB/T12579,ASTM D892,ISO6247,NFT60129.|
|2||Working unit||4 units|
|3||Heating method||oil bath|
|4||Temperature controlling method||Imported digital PID|
|5||Temperature controlling accuracy||±0.1℃|
