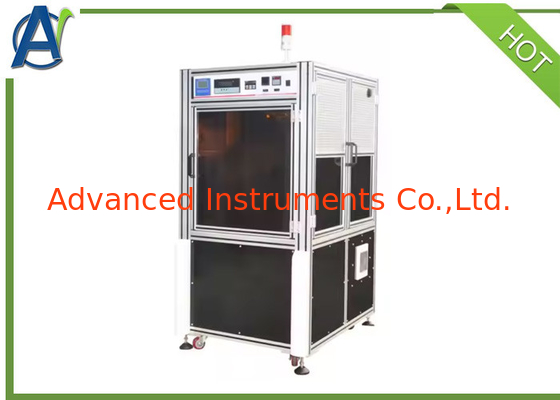

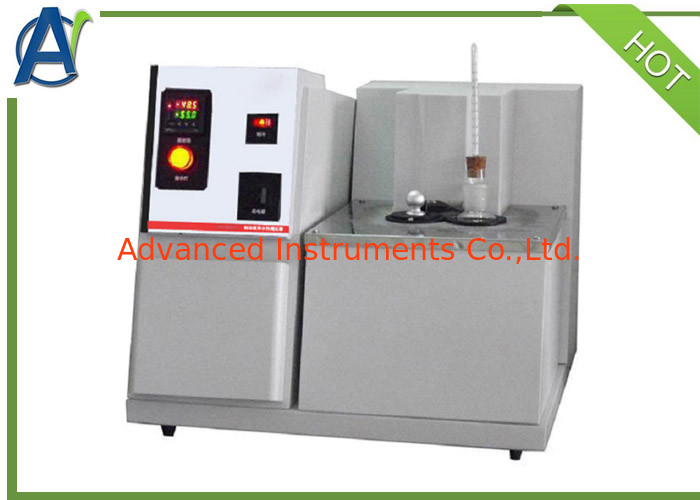

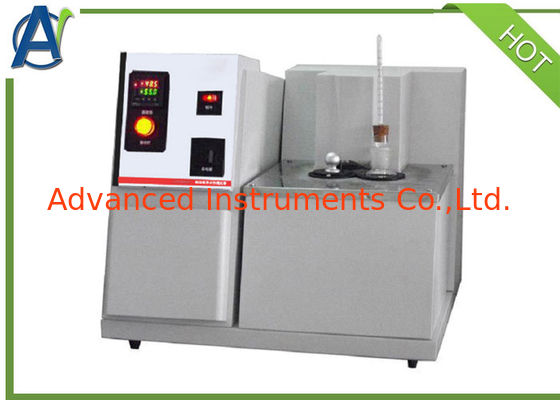

ISO4925 Water Absorption Meauring Device for Brake Fluid Laboratory Testing

ISO4925 Water Absorption Meauring Device for Brake Fluid Laboratory Testing

    • ISO4925 Water Absorption Meauring Device for Brake Fluid Laboratory Testing
    • ISO4925 Water Absorption Meauring Device for Brake Fluid Laboratory Testing
    • ISO4925 Water Absorption Meauring Device for Brake Fluid Laboratory Testing
  • ISO4925 Water Absorption Meauring Device for Brake Fluid Laboratory Testing

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: F8210

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Hardboard
    Delivery Time: 30 days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Temperature Controlling Range: -40℃~60℃ Heating Method: Electric Heating Tube
    Power Supply: AC220V /50HZ Temp.controlling Method: Digial PID Temperature Controller
    Timing Method: Digital Timer Alarming Method: Buzzer
    Test Standard: ISO4925 Warranty: 1 Year

    Summary

    This Water Absorption Meauring Device is suitable for evaluating the effect of water on brake fluid.

    The test principle involves adding humidified brake fluid to a conical centrifuge tube, keeping it at -40°C for 22 hours, then removing it and quickly observing the appearance of the sample, such as layering, precipitation, and transparency. After that, it is heated to determine the volume fraction of the centrifugal sediment.





    Main Features

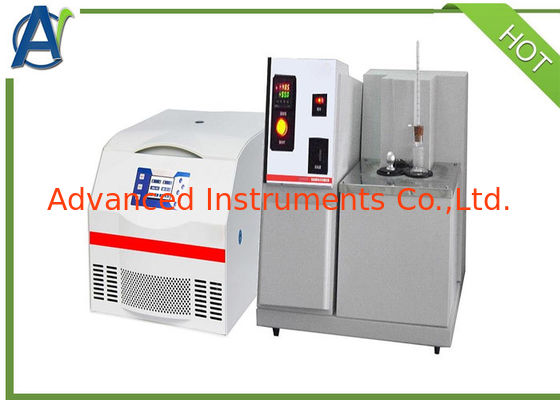

    1. Dedicated Centrifuge: Capable of conducting four sets of experiments simultaneously.

    2. 100ml Glass Centrifuge Tubes: Resistant to both high and low temperatures.

    3. Ventilated Heating Chamber: The top of the heating chamber is equipped with ventilation holes.

    4. Imported Fully Enclosed Compressor for Refrigeration: Provides a high cooling capacity.

    5. Exclusive Vibration Damping Technology: Ensures low noise levels.

    6. Microcomputer Temperature Controller: With PID self-tuning and PT100 temperature sensor for high precision.

    7. Digital Timer with Buzzer Alarm: Alerts when the experiment is finished.

    8. Instrument Housing: Made of cold-rolled steel plate with a surface treated by electrostatic spray coating.





    Technical specifications

    1 Power supply AC 220 V±10%, 50 Hz
    2 Temperature control range -40℃~60℃
    3 Heating method Electric heating tube heating
    4 Cooling method Compressor
    5 Temperature control method Digial PID temperature controller
    6 Timing method Digital timer
    7 Alarming method Buzzer
    8 Centrifugal method centrifuge machine
    9 Rotation adjust Speed regulator



    ISO4925 Water Absorption Meauring Device for Brake Fluid Laboratory Testing
