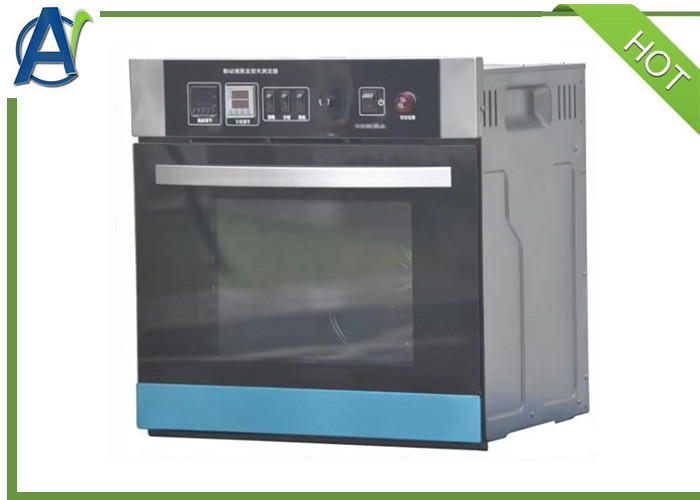

Name: ISO4925 Evaporation Loss Measuring Apparatus for Brake Fluid Analyzing
Brand: Advanced Instruments Co.,Ltd
SKU: F8205
Availability: InStock

Home Products Brake Fluids Measuring

ISO4925 Evaporation Loss Measuring Apparatus for Brake Fluid Analyzing

Product Details:

Place of Origin:	CHINA
Brand Name:	AI
Certification:	ISO
Model Number:	F8205

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Hardboard
Delivery Time:	30 days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Temperature Controlling Range:	Ambient~150℃	Heating Method:	Electrical Heating Tube
Power Supply:	AC220V /50HZ	Temp.controlling Method:	Digial PID Temperature Controller
Timing Method:	Digital Timr	Alarming Method:	Buzzer
Test Standard:	ISO4925	Warranty:	1 Year

Summary

This Evaporation Loss Measuring Apparatus is used to evaluate the high-temperature performance of brake fluid.

The test principle involves placing a specified amount of brake fluid in the instrument and maintaining it at a constant temperature for 168 hours. The evaporative loss is then calculated based on the mass change before and after the constant temperature exposure.

Main Features

1. Specialized Petri Dishes: Meet standard requirements with an outer diameter of 100mm and a height of 15mm.

2. Heating Chamber with Ventilation: The top of the heating chamber is equipped with ventilation holes.

3. Exclusive Vibration Damping Technology: Features low noise levels.

4. Microcomputer Temperature Controller: With PID self-tuning and PT100 temperature sensor for high precision.

5. Digital Timer with Buzzer Alarm: Alerts when the test is completed.

6. Instrument Housing: Made of cold-rolled steel plate with a surface treated by electrostatic spray coating.

Technical specifications

1	Power supply	AC 220 V±10%, 50 Hz
2	Temperature control range	ambient~150℃
3	Heating method	Electric heating tube heating
4	Temperature control method	Digial PID temperature controller
5	Timing method	Digital timer
6	Alarming method	Buzzer

ISO4925 Evaporation Loss Measuring Apparatus for Brake Fluid Analyzing
