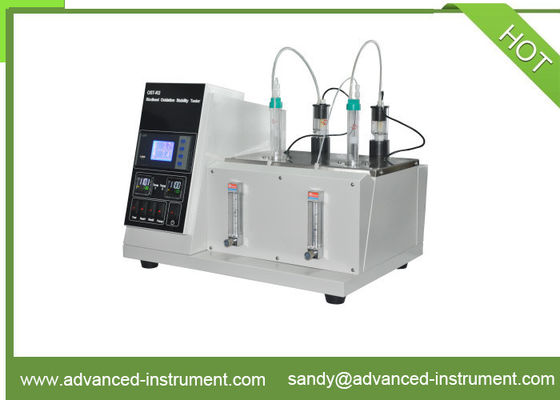

EN 15751 Accelerated Oxidation Method Biodiesel Oxidation Stability Tester

EN 15751 Accelerated Oxidation Method Biodiesel Oxidation Stability Tester

    • EN 15751 Accelerated Oxidation Method Biodiesel Oxidation Stability Tester
    • EN 15751 Accelerated Oxidation Method Biodiesel Oxidation Stability Tester
  • EN 15751 Accelerated Oxidation Method Biodiesel Oxidation Stability Tester

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: OST-R2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Hardboard
    Delivery Time: 20days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Test Standard: EN 14112 & EN 15751 Test Method: Rancimat
    Temperature Range: Ambient~150±0.1℃ Working Units: 2 PCS
    Warranty: 1 Year Keyword: Oxidation Stability Tester
    Display: LCD Power Supply: AC220V±10% 50HZ

    EN 15751 Biodiesel Oxidation Stability Tester



    Introduction:

    ● Test standard:EN 14112 & EN 15751

    ●Temperature controlling:PID digital controller,temperature is controlled separately.

    ● Gas source:special membrane pump 10L/H

    ● Temperature controlling method:electrical heating rod

    ● Working temperature:ambient~150±0.1℃

    ● Test time:about 14 hours

    ● Power supply:AC220V±10% 50HZ

    ● Test unit:2 tubes tests separately,it’s convenient to test parallel samples




    Features:

    1.It’s designed according to EN14112 and suitable for measurement of oxidation stability of lubricating grease

    2.It meet the requirements of EU and China standards.

    3.Adopt imported PID temperature controller,the temperature is stabilized between

    ambient~150℃,accuracy is ±0.1℃.

    4.Imported heating band guarantees safety and environmental protection

    5.Special membrane pump can control the flow rate correctly and steadily.

    6.Particular air filtering system makes multi air paths smooth and good air gas source.

    7.Conductivity meter measure data in real time,large LCD screen IPC automatically record,store data,input and process multi-channel data,display conductivity of lubricating grease during oxidation and induction period in real time.

    8.Display method:curve and digital

    9.Every test is stored in data base.All data related to curve and whole method can be called.Even after a long time,you can used previous measuring points for current test.

    10.Result process:automatically measure,print,manually break curve

    11.Each sample is controlled independently,and it can be set as per request automatically.

    12.Two temperature control systems:110℃ and 140℃



    Specifications:

    Test standard EN 14112 & EN 15751
    Test method Rancimat
    Temperature range ambient~150℃
    Display LCD
    Test units 2 holes
    Sample Biodiesel
    Power supply AC220V±10%/50HZ



    • EN 14112 “Fat and oil derivatives – Fatty acid methyl esters (FAME) – Determination of oxidation stability (accelerated oxidation test)”
    • EN 15751 “Automotive fuels – Fatty acid methyl ester (FAME) fuel and blends with diesel fuel – Determination of oxidation stability by accelerated oxidation method”
    • EN 16568: “Automotive fuels – Fatty acid methyl esters (FAME) fuel und blends with diesel fuel – Determination of oxidation stability by rapidly accelerated oxidation method at 120 °C“

    EN 15751 Accelerated Oxidation Method Biodiesel Oxidation Stability Tester
