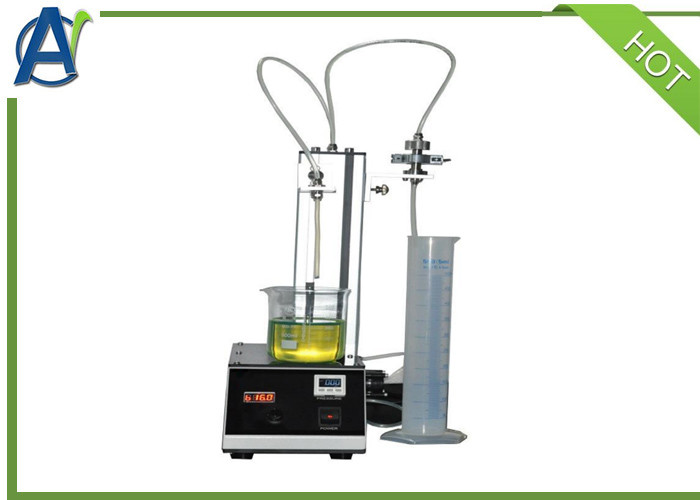

ASTM D2086 Filter Blocking Tendency FBT Test Apparatus for Distillate Fuels

Home Products Crude Oil,Fuel and Diesel Testing

ASTM D2086 Filter Blocking Tendency FBT Test Apparatus for Distillate Fuels

Product Details:

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	FBT-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 set Filter Blocking Tendency Apparatus
Price:	Negotiable
Packaging Details:	Filter Blocking Tendency Apparatus is packed in Hardboard box
Delivery Time:	20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Standards:	ASTM D2086	Application:	Fuel Oil
Pressure Range:	0~105 KPa	Sample Flow:	20ml/min
Power Supply:	220V±10V 50Hz	Power Consumption:	200W
Warranty:	1 Year	Filter Membrane:	1.6μm,GF/A Glass Fiber
Display:	Digital	Color:	White

Introduction

This filter blocking tendency apparatus has built-in NB/SH/T 0895-2015 test requirements.
The microcomputer processing controller, color touch screen, and USB data interface are equipped. The interface operation is simple. The built-in refrigeration module, weighing module, and high-precision pressure sensor ensure the test.
The process of determining the filterability of distillate fuel oil with viscosity ranging from 1.70 to 6.20mm2/s (cSt) at 40ºC. Measurement of filter blocking trend (FPT) can determine when to stop using.

I.Main features

1.The filter blocking tendency apparatus adopts the method A specified in the standard, and all stainless steel filter chamber;
2.Digital display test pressure;
3.Quick-release chamber, easy to operate;
4.Built-in pulse damper to balance pressure;
5.Safety protection measures, automatic stop when the pressure reaches 105KPA;
6. Accurate metering pump ensures stable flow rate;

II.Technical specifications

1.Pressure range:0~105 KPa
2.Pressure resolution:1KPa
3.Sample flow:20ml/min
4.Filter membrane:1.6μm,GF/A glass fiber
5.Power supply:220V±10V 50Hz
6.Power consumption:200W
7.Flow control:Stepless speed regulation
8.Flow calibration:programmed
