Manual Model Crude Oil Aniline Point Tester In Accordance With ASTM D611

Product Details:

Place of Origin:	CHINA
Brand Name:	AI
Certification:	ISO
Model Number:	AIC-262

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Hardboard
Delivery Time:	20 days
Payment Terms:	L/C, T/T, Western Union

Contact Now

Detailed Product Description

Test Standard:	ASTM D611 Aniline Point Test Instrument	Power Supply:	AC 220V±10%, 50 Hz
Temp.range:	Ambient To 150℃	Detection Method:	Photoelectric Detection
Warranty:	1 Year	Color:	White

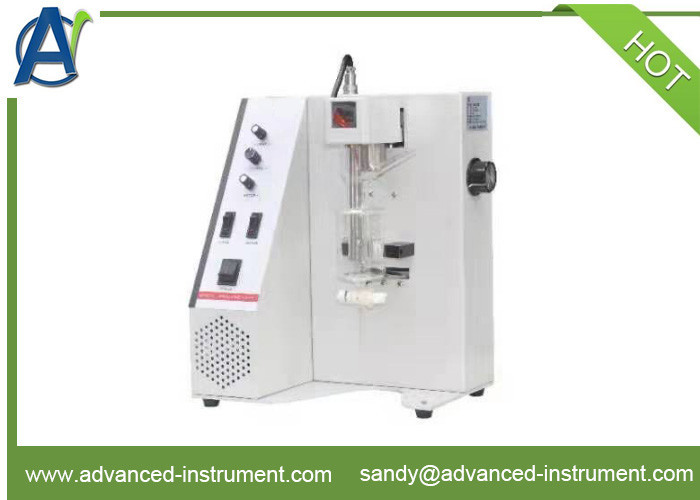

Manual Model Crude Oil Aniline Point Tester

Name: Manual Model Crude Oil Aniline Point Tester In Accordance With ASTM D611
Brand: Advanced Instruments Co.,Ltd
SKU: AIC-262
Availability: InStock

Summary

This instrument is suitable for the determination of aniline point of petroleum products by placing a specified volume of aniline and sample in a test tube and mixing it with mechanical agitation. The mixture is heated at a controlled rate until the two phases are completely mixed. The mixture is then cooled at a controlled rate, and when the two phases are separated, the recorded temperature is the aniline point.

I. Main technical features

1,The result of photoelectric detection and separation is accurate;

2,The high-power solid-state voltage regulator controls the heating rate;

3,The voltage device displays the temperature rise state;

4,Integrated structure of AIC-262 Aniline Point Tester is easy to operate;

5,Standard glass test tubes comply with standard requirements;

II. Main technical specifications

No.	Item	Specification
1	Applicable standards	ISO2977, GB/T262,ASTM D611
2	Heating method	Electric heating tube heating
3	Mixing method	Soft shaft mixing
4	Detection method	Photoelectric detection
5	The measurement range	Room temperature ~ 150 ° C
6	Working power	AC220V 50HZ
7	Temperature adjustment	Solid state regulator
