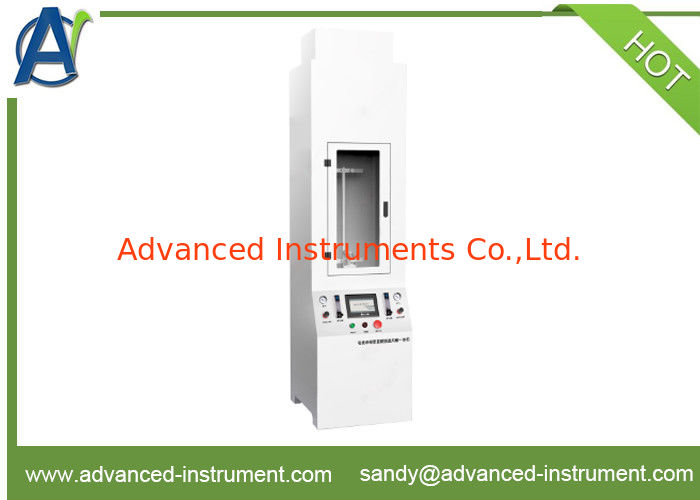

Vertical Flame Propagation Test Apparatus
Introduction:
This test apparatus meets the standards IEC 60332-1-1:2004.Single cable flame propagation test apparatus is used to test the flame retardant property of the cable's insulating layer under abnormal conditions such as overheat and overcurrent.It can be used in vertical cable or fiber flame spread test,alsocanbe testthe state of flaming droplets during combustion.
Standards:
- IEC 60332-1-1,2,3: testing the resistance to vertical flame propagation for a single vertical electrical insulated conductor or cable, or optical fibre cable, under fire conditions.
- EN 50086-1-1994:Specification for conduit systems for cable management
Main features:
1, The touch screen intelligent control system; Operating interface in English and Chinese;
2, The apparatus has functions of automatic ignition, automatic timing, automatic data storage;
3, The test section and control section isconbineddesign in one box for installing and operation;
4, Stainless steel test box,andthe internal cavity size is height 1200mm, width 300mm, depth of 450mm;
6, A pre-mixed burner, andinnerdiameterisФ12 ± 0.5mm, length is 100mm. 1kW mixed type standard burner, which canbe providesaccurate test fire;
7, Flame time and duration of combustion can be adjusted from 0 to 99 minutes 99 seconds. Automatic control testing process;
8, Import needlevavleprecisely adjust the flame height, according to standards, the blue flame height is 50mm ~ 60mm, total height is 170mm ~ 190mm;
9, The gas flow rate is controlled by needle valve;
10, Vertical Flame Propagation Test Apparatus is equipped with a steeless flame height caliper;
11, With a gas flow meter and pressure regulator; automatic ignition;
12, The burner angle canbe adjustbetween 45 ° and 0 °;
13, Flame check device for optional.
