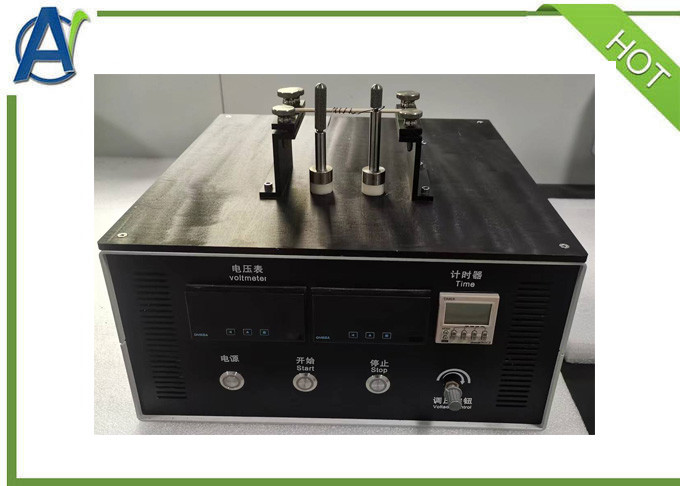

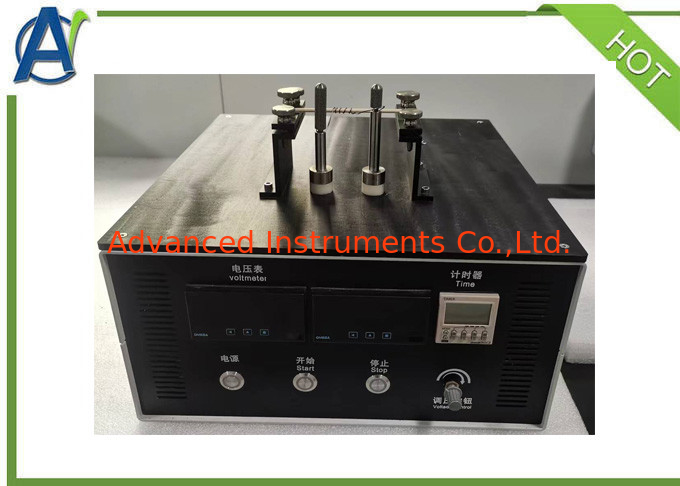

IEC 60695-2-20 Ignition Test Apparatus for Hot Wire Coil

IEC 60695-2-20 Ignition Test Apparatus for Hot Wire Coil

    • IEC 60695-2-20 Ignition Test Apparatus for Hot Wire Coil
    • IEC 60695-2-20 Ignition Test Apparatus for Hot Wire Coil
    • IEC 60695-2-20 Ignition Test Apparatus for Hot Wire Coil
  • IEC 60695-2-20 Ignition Test Apparatus for Hot Wire Coil

    Product Details:

    Place of Origin: China
    Brand Name: AI
    Certification: ISO,CE
    Model Number: AIC-695220

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set Ignition Test Apparatus
    Price: negotiable
    Packaging Details: One Ignition Test Apparatus packed in one plywood case
    Delivery Time: 30 days
    Payment Terms: T/T, Western Union
    Supply Ability: 100 Sets/Month
    Contact Now
    Detailed Product Description
    Test Standard: IEC 60695-2-20 And GB 4943 Test Object: Hot Wire Coil
    Diamter Of Heating Coil: Φ0.5mm Length Of Heating Coil: 250mm ± 5mm
    Height Of Specimen Holder: 60mm Distance Of Sample Holder: 70mm
    Winding Tension: 5.4N ± 0.05N Winding Distance: 6.3mm ± 0.2mm
    Annealing Time: 8s~12s Volume Of Test Chamber: 0.5cm3

    Product introduction
    The hot wire ignition test chamber is designed according to IEC 60695-2-20 and GB 4943 standards and conforms to the standard hot wire ignition test method.
    This hot wire ignition test chamber is mainly used for testing the hot wire ignition hazard of electronic and electronic products and household appliances. It is equivalent to simulating a heat source or a fire source luminous element and overload, which can easily cause thermal stress in a very short time.

    Reference standards:
    IEC 60695-2-20,GB 4943

    Technical parameter:
    1) Heating coil: Φ0.5mm, Ni80/Cr20, length 250mm ± 5mm, thermal resistance 5.28 Ω/m, annealing frame distance 250mm;
    2) Distance and height of specimen holder: 70mm, height: 60mm (the distance is from the surface of specimen holder to the surface of connector plate);
    3) Winding tension and distance: 5.4N ± 0.05N, 6.3mm ± 0.2mm (within the range of 31.5mm ± 0.5mm, the coil is 5 turns, and the national standard is 6mm);
    4) Annealing time and power: 8s~12s (digital display can be preset); 0.26W/mm ± 4% (adjustable digital display);
    5) T Test time and power: 120s (1s~999.9s digital display can be preset), 0.26W/mm ± 4% (digital display can be adjusted);
    6) Sample size: LXWXH: (125 ± 5) × (13.0±0.5) × (0.75+0.075) mm, 1.5+0.150mm, 3+0.30mm) National standard 0.75 ± 0.1mm, 1.5 ± 0.1mm, 3 ± 0.2mm;
    7) The volume of the combustion chamber is more than 0.5cm3 (other dimensions are optional).
