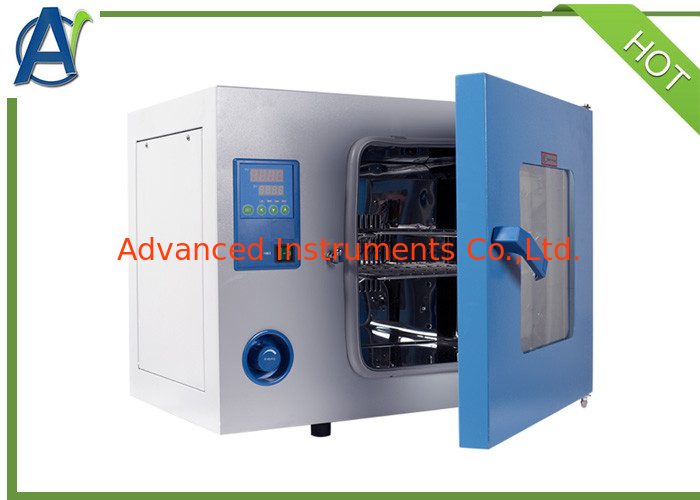

IEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding Wires

IEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding Wires

    • IEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding Wires
    • IEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding Wires
    • IEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding Wires
  • IEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding Wires

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: AIGYH-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET Heat Shock Test Equipment
    Price: negotiable
    Packaging Details: One Plywood case for Heat Shock Test Equipment
    Delivery Time: 90 days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 10 Sets/month
    Contact Now
    Detailed Product Description
    Test Standard: IEC 60851-6 Power Supply: AC220V 50Hz
    Temperature Control Range: RT+10~300ºC Color: Blue
    Power Consumption: 2050W Volume: 136L
    Dimension: 840×580×730 Load Carrier: 2 Pieces
    Timing Range: 0~9999min Dimension Of Inner Tank: 550×450×550

    Introduction
    The drying oven can be used to measure heat shock,by working with Winding test equipment and Elongation test equipment.The drying oven is produced by advanced laser and numerical control processing equipment.It's used for drying, baking wax melting, sterilization, testing for industrial and mining enterprises, laboratories, scientific research institutions, etc.

    Product features:
    1.The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel.
    2.Microcomputer PID temperature controller with over temperature deviation protection and digital display is adopted, with timing function, and the temperature control is accurate and reliable.
    3.The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct to improve the temperature uniformity in the studio.
    4.New synthetic silicon sealing strip is adopted, which can operate at high temperature for a long time, with long service life and easy replacement.
    5. The air inlet and exhaust volume in the box can be adjusted from the temperature control panel.

    Technical parameters

    Power supply AC220V 50Hz
    Temperature control range RT+10~300ºC
    Constant temperature fluctuation ±1.0ºC
    Temperature resolution 0.1ºC
    Temperature uniformity ±3%(Test at 100ºC)
    Ambient temperature +5~40ºC
    Power consumption 2050W
    Volume 136L
    Dimension of inner tank
    (mm)W×D×H
    550×450×550
    External dimension(mm)W×D×H 840×580×730
    Load carrier 2 Pieces
    Timing range 0~9999min



    IEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding WiresIEC 60851-6 Drying Oven Heat Shock Test Equipment for Winding Wires
