Double End Grinding Device at Speed Of 12m/s For Rubber And Plastics

Product Details:

Place of Origin:	CHINA
Brand Name:	AI
Certification:	ISO
Model Number:	AIC22057

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET Double End Grinding Device
Price:	Negotiable
Packaging Details:	Plywood case
Delivery Time:	25 days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Application:	Rubber, Plastic Etc	Grinding Wheel Speed:	12m/s
Grinding Wheel:	170×40×32,36 And 80 Grains	Motor:	Three- Phase 380V, 1400r /min
Working Dimensions:	Diameter: 160mm×44mm	Working Wheel Stroke:	20mm
Overall Dimension:	500mm×400mm×314mm	Power Supply:	AC Three- Phase 380V 50/60Hz 3A
Weight:	80kg	Warrangy:	1 Year

Product description:

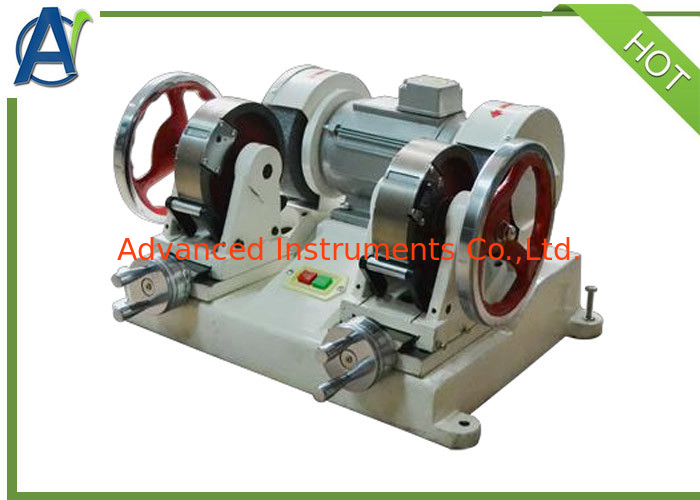

Double-end grinding device is used to grind the rubber, plastic and the other similar sample to a certain thickness for the test of other testing device, with advantages of both precision grinding wheel and fine grinding wheel working at the same time.

Standard:

• GB/T 2951-2008

Technical parameters:

• Grinding wheel speed: 12m/s

• Grinding wheel: G260APRI 170×40×32, 36 grains G260APRI 170×40×32, 80 grains

• Motor:GO2-11-40.6W, three- phase 380V, 1400r /min；

• Working dimensions: diameter: 160mm×44mm, height of center: 214mm

• Working wheel stroke: 20mm

Specifications:

• Overall dimensions: 500mm×400mm×314mm

• Power supply: AC three- phase 380V 50/60Hz 3A

• Weight: 80kg
