|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Plywood case|
|Delivery Time:||60 days|
|Payment Terms:||Western Union, T/T, L/C|
|Supply Ability:||20 sets per month|
|Test Standard:||ISO 6941,ISO 15025,95/28/EC||Gas Supplies:||Propane And Air Compressed Air|
|Size:||410mm(W) X 900mm(H) X 380mm(D)||Power Supply:||230 Volts AC 50Hz|
Vertical Flame Tester is suitable for the measurement of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.
The vertical flame test apparatus is designed and manufactured according to ISO 15025 standards.
The flame test tnstrument can be updated to meet the requirement of ISO6941,ISO 6940 etc by using different specimen holders.
The apparatus consists of mounting frame, gas burner, test specimen holder with Supporting pins.
The angle of the burner can be pre-setted and adjusted automatically.
Flame application time can be pre-setted and operate automatically.
Afterflame time and afterglow time recorded by LCD screen.
|Electrical||230 Volts AC 50Hz.|
|Ambient Temperature||Operating 25±5℃|
|Dimensions||4410mm(W) X 900mm(H) X 380mm(D)|
|Applicable standards||ASTM D2863,ISO 4589-2,NES 714|
|Gas||Propane and air compressed air|

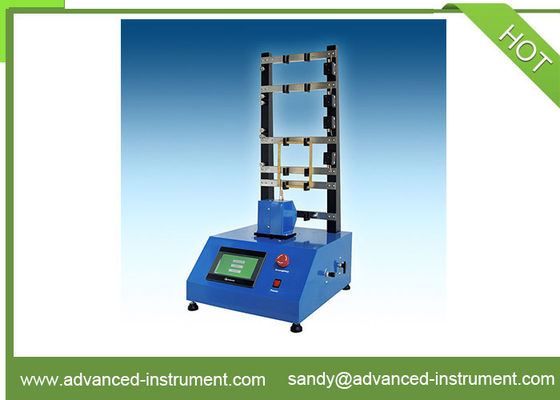

Photos of Protective Clothing Vertical Flame Test Tnstrument
