High-Voltage Resonance Tester For GIS Substation And Cable Testing

High-Voltage Resonance Tester For GIS Substation And Cable Testing

    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
    • High-Voltage Resonance Tester For GIS Substation And Cable Testing
  • High-Voltage Resonance Tester For GIS Substation And Cable Testing

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: RTS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Plywood case
    Delivery Time: 15 days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 100 Sets per Month
    Contact Now
    Detailed Product Description
    Power Supply: 380V±10%, Three-phase 50Hz/60Hz Max Voltage Output: 0~1000KV
    Max Output Capacity: 0~6400KVA Test Frequency Range: 30~300HZ
    Warranty: 1 Year Keyword: High Voltage Resonance Tester

    High Voltage Resonance Tester

    Introduction

    High voltage series resonance tester is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the resonance testert is widely applied in GIS, Power cable and generator insulation testing.





    Technial specifications

    1 Max voltage output 0~1000KV
    2 Max output Capacity 0~6400KVA
    3 Test frequency range 30~300HZ
    4 Frequency setting resolution 0.1HZ
    5 Test voltage waveform sine wave,waveform deviation factor : ≤1%
    6 Power supply 380V±10%, three-phase 50Hz/60Hz
    7 Environment condition Temperature: 0~50℃
    8 Humidity ≤ 80%RH

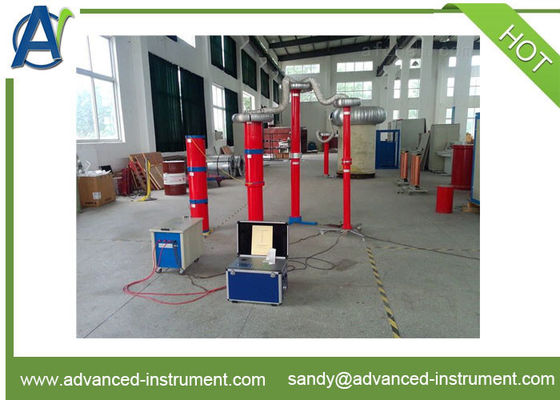

    Photo of High Voltage Resonance Tester

    High-Voltage Resonance Tester For GIS Substation And Cable Testing
