Circuit Breaker Analyzer Automatic Mechanical Characteristic Tester

Circuit Breaker Analyzer Automatic Mechanical Characteristic Tester

    • Circuit Breaker Analyzer Automatic Mechanical Characteristic Tester
    • Circuit Breaker Analyzer Automatic Mechanical Characteristic Tester
    • Circuit Breaker Analyzer Automatic Mechanical Characteristic Tester
  • Circuit Breaker Analyzer Automatic Mechanical Characteristic Tester

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: CBA-I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 15 days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 100000 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: AC 220V±10% Display: LCD
    Time Measurement: 4000ms Resistance Measurement: 50~5000ohm
    Warranty: 1 Year Keyword: Circuit Breaker Analyzer,Mechanical Characteristics Tester

    Circuit Breaker Analyzer Automatic Mechanical Characteristic Tester

    Circuit Breaker Analyzer is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration characteristics etc. The functions of Circuit Breaker Analyzer cover all testing items of high voltage circuit breaks.

    Comparing with the traditional circuit breaker tester, this Circuit Breaker Analyzer has the following unique advantages:
    1) The integrated vibration test function of Circuit Breaker test set provides a new means of detection circuit breaker mechanical characteristics for users, compared to traditional time measurement and speed measurement, the vibration fingerprint detection is easier and more efficient.
    2) The vibration fingerprint test results contain richer information of circuit breaker operation, for potential risk of failure or faulty breakers, it can locate the fault position quickly.
    3) The vibration tests do not need to change the original line connection, so the users can complete the charged detection of mechanical characteristics of circuit breaker.
    4) Arcing contact analysis module allows users to automatically assess the degree of loss of inside Arc suppression contact of circuit breaker without disassembly.
    5) Users can use Circuit Breaker Analyzer to complete the contact resistance tests, do not need to buy contact resistance tester separately.



    1) Measurement of closing time, opening time, time spread between poles, time spread between units of one pole, bounces etc.
    2) Measurement of closing speed, opening speed and average speed.

    3) Measurement of clearance between open contacts, over travel, overshoot travel and total travel.

    4) Measurement of closing coil current time curve, opening coil current time curve and the maximum coil current

    5) Test travel time curve, speed time curve and acceleration time curve

    6) Measurement of pre-insertion resistance value and pre-insertion ion time.

    7) Test contact resistance

    8) Measurement of dynamic resistance time curve and length for arcing contacts

    9) Vibration test, including vibration fingerprint curve acquisition, management, and vibration fingerprint curve automatic matching.

    10) CO-t1-CO,O-t-CO-t1-CO,CO rated operating sequence verification test.

    11) Drawing Envelopes for reference travel curve and compare travel curve with envelopes

    12) Mechanical travel curve automatic compare with saved travel curve

    13) Measurement of CO time (close-open time) and OC time (Opening-Closing time)

    14) Graphite contact closing time, opening time, dynamic resistance curve measurement

    15) Zoom, editors, statistics and analysis for measurement curves.

    16)12.1-inch touch screen for control and data input

    17) Built-in micro printer for test result printout.

    18) Generate WORD format test report automatically (all reports and data can be exported through Flash disk).



    III.Technical specifications

    12 channels for time measurement 3-channel supports both the time contact and resistance contact time
    6-channel isolated contacts for cascaded unit measurement of pole
    Time measurement Range: 4000ms
    Error :< 0.1ms
    Resolution: 0.01ms
    Travel measurement according to sensor Linear resistance sensor:
    Measurement range: 0~250mm; resolution: 0.01mm; error:<0.5mm
    Measurement range: 0~25mm; resolution: 0.01mm; error:<0.05mm
    Angle resistance sensor:
    Measurement range: 0~360°; resolution: 0.01°; error:<0.5°
    Pre-insertion Resistance Measurement Range: 50~5000ohm; error :<1%RDG+2D
    Dynamic resistance measurement Test current: 25~100A
    Measurement error :< 1%RDG+2D
    Contact resistance measurement Range:0--10mohm ; Error<0.5%RDG+0.05%FS
    Range: 0-2mohm; Error:<0.5%RDG+2D
    Speed measurement 250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D
    25mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D
    Angle sensor: 0~20m/s; error:<0.5%RDG+2D
    Acceleration sensor: 0~20m/s; error:<5%RDG+2D
    Coil current measurement Range: 0~20A; resolution: 0.001A; error:<0.01A
    Vibration measurement Range: 0~5000G; error:<3%
    Internal DC power source Voltage: 12~265V; current:0~20A
    Data Save Built-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connection
    Power supply AC220V±10%; 50Hz±10%
    Working environment Temperature: -10~50°C; Humidity:<80%

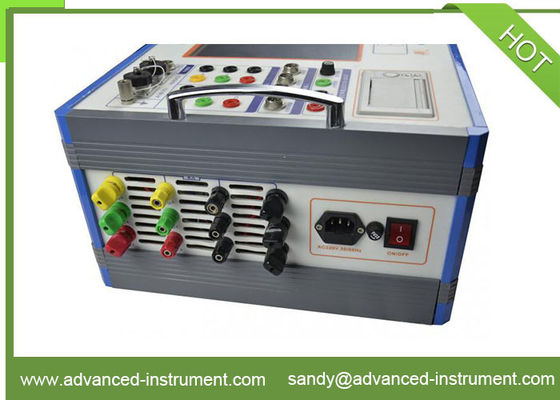

    Picture of Advanced Automtaic Circuilt Breaker Analyzer

    Circuit Breaker Analyzer Automatic Mechanical Characteristic TesterCircuit Breaker Analyzer Automatic Mechanical Characteristic Tester
