ASTM D3675 Radiant Panel Flammability Test Equipment

Introduction
ASTM E162 is one most widely used test standard to evaluate the propagation properties of material in USA. The heat resource use gas radiant panel heating and a gas burner ignited. This method is widely used in flame propagation properties of the test material for rail train material to evaluate flame retardant based on the standard NFPA 130, like evaluation train interior panels, ceilings, sound insulation, windows, lintels, seat side panels and other components performance.

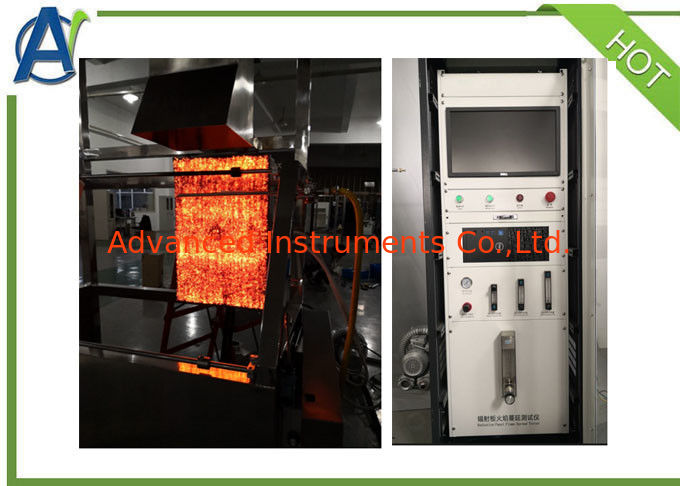

ThisRadiant Panel Flammability Test Equipment is designed according to ASTM E162 and ASTM D 3675 standards; The equipment implements test methods to assess combustion properties of the material surface flaming.
During the test, the specimen is exposed to a radiation source and medium-sized burner plate up to 15min, after ignition the sample, record the time of flame front reaches the reference mark. Test, and also record the flue gases released and the smoke production and burning droplets

Standards
• ASTM E 162: Using a Radiant Heat Energy Source, flammability standard test surface test methods
• ASTM D 3675: Using a Radiant Heat Energy Source, test the surface of flexible porous material flammability standard test method

Structural features
• Frame structure of Radiant Panel Flammability Test Equipment is made of stainless steel; beautiful and corrosion-resistant;
• The fan with filter and it can supply air to the reflector plate
• Device has igniter, electronic ignition, automatic flame safety monitoring device
• Stainless steel sample holder, set up observation points every 3 inches for observing the flame front progress
• Stainless steel sample holder fixture and burner ignition devices are supplied with Radiant Panel Flame Spread Tester.
• The flow meter and gas control valves control gas mixture into the radiation plate
• Stainless steel exhaust pipes with removable parts for easy cleaning thermocouples, exhaust pipe is fixed with 8 thermocouple according to standard
• Calibration burner has the 1.8mm hole at 16 different angles and be along the center line
• DAQ system can achieve automatic control and measurement
• Radiant Panel Flammability Test Equipment has gas safety control and circuit breaking means.

Control System:
1, Radiant Panel Flammability Test Equipment uses independent electrical control cabinet;
2, Intelligent testing system and easy to operate;
3, Radiant Panel Flammability Test Equipment adopts imported gas flow meter to accurate control the gas flow;
4, Experimental data is automatically saved and can be print free;
5, Radiant Panel Flammability Test Equipment is equpped with famous brand computer;
