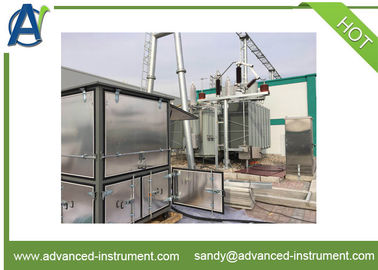

4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
    • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification
  • 4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification

    Product Details:

    Place of Origin: China
    Brand Name: AI
    Certification: ISO
    Model Number: VTD-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 30 days
    Payment Terms: D/P, T/T, Western Union
    Supply Ability: 100 Sets per month
    Contact Now
    Detailed Product Description
    Function: Purify Used Transformer Oil Nominal Capacity: 4000L/H
    Working Vacuity: -0.06~0.099 MPa Power Supply: 50Hz,380V,3 Phase 4 Wire
    Total Power: 52KW Operation Noisy: ≤80dB(A)

    VTD-4 Double Stage High Vacuum Oil Purifier for Transformer Oil

                                         4000L/H Double Stage High Vacuum Oil Purifier for Transformer Oil Purification





    ​I.Application:

    This transformer oil purifier is mainly used to remove gas,water and impurities in insulation oil and improve transformer oil's dielectric strength.It can also be used for pumping vacuum for transformer,vacuum oil injection and thermal oil circulation.



    II.Technical specifications

    • Model:VTD-4 Transformer oil purifier
    • Nominal capacity:4000L/h
    • Working vacuity:-0.06~0.099 MPa
    • Limit vacuity:≤5-8Pa
    • Working oil temperature:45~65℃
    • Working pressure:≤0.5Mpa
    • Power supply:50Hz,380V,3 phase 4 wire
    • Heating power:48Kw
    • Total power:52kw
    • Head:≥15m
    • Operation noisy:≤80dB(A)
    • Diameter of oil inlet/outlet:42/42mm
    • Continuous operation time:≥200 hours
    • Average faultless working time:≥5000 hours



    III.Index of clean transformer oil

    1 Water content ≤10ppm
    2 Gas content ≤0.5%(by volume)
    3 Filter accuracy ≤1µm
    4 Breakdown voltage ≥70KV(Ball)
    5 Ethane content Null
