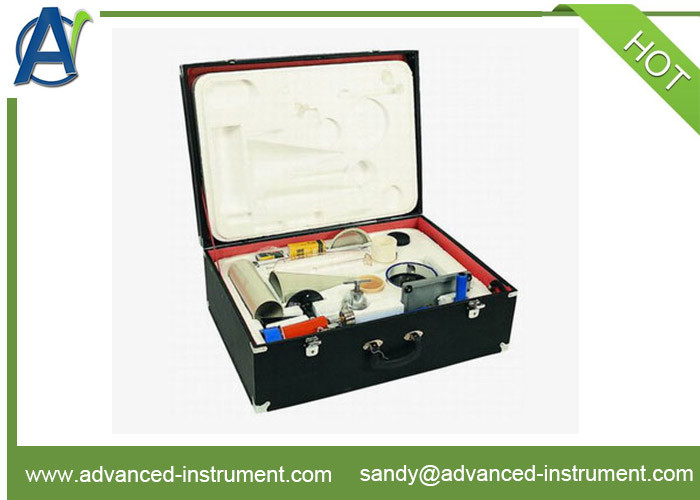

Sand Content Tester for Mud
Summary
The sand content tester is suitable for well site or laboratory to measure the sand content of slurry. It takes the slurry through the sieve to determine the change in the volume of filtered, expressed as a percentage.
I. Main technical specification
1. Sieve standard: 200 meshes;
2. Sand content scale: 0％～15％ per 0.5%, 15％～30％ per 1％.
Water Loss Tester for Mud
Summary
The water loss tester according to the law of the People's Republic of China standard GB/T 16783.1 the “oil and gas industry drilling fluid field test Part 1: Water-based drilling fluid”, the requirements of the relevant chapters in the design and manufacture of it. The instrument is used to determine the water loss of drilling slurry when it goes through a certain size of filtration area within a certain time (30 minute) under stipulated working pressure (0.69 MPa). It can also measure the thickness of slurry cake formed after the drilling slurry loss of water.The instrument has three types, with an inflator, or with a pressure reducer water loss meter, air pump filtration apparatus. The instrument with an inflator can provide air source using the inflator equipped, so it is simple to be operated and convenient to be carried. It is the best choice of the slurry filtration experiment.
I. Main technical specification and parameters
1. Working pressure: 0.69 MPa;
2. Effective filtration area: 45.6±0.5 cm2;
3. Cubage of slurry cup: 240 ml;
4. Dimensions: (when 450㎜- rise) 220 mm× 150 mm × 300 mm (Host: length × width × height).
Viscometer for Mud
Summary
The slurry viscometer is suitable for well site and laboratory to measure the viscosity of the slurry. The viscosity of slurry is determined by measuring the elapsed time for flowing out 500 cm3 slurry from the1006 Viscometer. Its unit is second.
I. Main technical specification and parameters
1. Outflow pore diameter 5mm, length 100mm.
2. Water value 15 ± 0.5s.
3. The cubage at one end of the graduated flask is 500 cm3, and it is 200 cm3 at other end.
4. All instruments including attachments, mud tank etc., weight: about 2.5 kg.
Gravimeter for Mud
Purpose:
Slurry Gravimeter is used to determine the weight of slurry at the drilling field or in the laboratory. Its unit is g/cm3.
Technical parameters
| 1 |
Measurement range |
0.96~3 g/cm3 |
| 2 |
Measurement accuracy |
0.01 g/cm3 |
| 3 |
Cubage of slurry cup |
140 cm3 |
| 4 |
Size |
500 (length) ×100 (Width) ×100 (Height)
|
