ASTM D88 Asphalt Saybolt Viscosity Test Equipment for Bitumen Testing

Product Details:

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	SVT

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Plywood case
Delivery Time:	10 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 PC/Month

Contact Now

Detailed Product Description

Test Method:	Saybolt Viscometer Method	Test Standard:	ASTM D88
Working Units:	2 Pcs	Power Supply:	AC(220±10%)V 50Hz
Working Temp.:	Room Temp.~240℃	Size:	360mm×360mm×790mm
Display:	LCD	Purpose:	Determine The Saybolt Viscosity Of Bitumen And Bituminous Mixtures

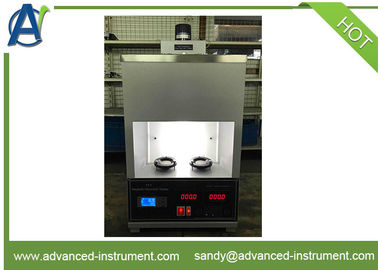

Asphalt Saybolt Viscosity Test Equipment

I.Introduction:
The saybolt viscosity test equipment is designed and made as per T 0623 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method) in the JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering.
It is suitable to determine the Saybolt viscosity of bitumen and bituminous mixtures under a constant temperature as per T0623.

II.Features:
1. This saybolt viscosity test equipment is composed of bath, temperature controller, parameters display and calculation (calibration coefficient, time, viscosity and so on).
2. This bitumen saybolt viscosity testing equipment adopts micro computer technology. It equips double lines to detect. It can determine two samples at the same time. It can display the parameters and calculate the arithmetic mean value automatically.
3. This saybolt viscosity apparatus can convert the Saybolt viscosity to Engler viscosity and kinematic viscosity automatically. Operator can get three viscosity data from one test. The work efficiency is high.

III.Specifications:

1	Power supply	AC(220±10%)V 50Hz
2	Instrument structure	Desktop type
3	Working mode	Double lines,parallel test
4	Receiving flask	(60±0.0)5ml
5	Heating power of bath	1000W
6	Working temperature of bath	Room temp.~240℃
7	Temperature control accuracy	±0.1℃
9	Timing range	0.0s~999.9s
9	Timing accuracy	±0.1s
10	Ambient temperature	≤35℃
11	Relative humidity	≤85%
12	Overall dimension	360mm×360mm×790mm

III.Accessories List

No.	Item	Unit	Qty
1	Sample receiving flask	Piece	2
2	Stopper handle	Piece	2
3	Stopper	Piece	10
4	Mercury thermometer 0～50 ℃, scale division is 0.1 ℃	Piece	1
5	Mercury thermometer 0～300 ℃, scale division is 1 ℃	Piece	1
6	Stopper for glass thermometer (silicon gel stopper 8 #)	Piece	1
7	Stopping ring for thermometer (1#)	Piece	4
