IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment

IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment

    • IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment
    • IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment
    • IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment
    • IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment
  • IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: AIC-60331A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: negotiable
    Packaging Details: Plywood case
    Delivery Time: 60 days
    Payment Terms: Western Union, T/T, L/C
    Contact Now
    Detailed Product Description
    Test Standard: IEC 60331-11&21 Power Supply: AC 380V 3-phase, 50 / 60Hz, 30A
    Overall Dimension: 1,600 (W) × 850 (D) × 1,650 (H) Mm Console Size: 600 (W) × 750 (D) × 1,200 (H) Mm
    Keyword: Fire Resistance Characteristics Test Equipment Warranty: 1 Year

    Wire and Cable Fire Resistance Characteristics Test Equipment



    Introduction:
    Fire-resistant cable refers to the cable that can keep a safe running time in the case of flame combustion.
    This Fire Resistance test equipment is designed according to the requirements of IEC60331-11,and used to obtain the refractory characteristics of a fire resistant cable or optical cable under flame conditions.


    Standards
    • IEC 60331 Part 11:Tests for electric cables under fire conditions – Circuit integrity – Part 11: Apparatus – Fire alone at a flame temperature of at least 750 degree C

    • IEC 60331 Part 21:Specifies the test procedure and gives theperformance requirement, including a recommended flame application time, for cables of rated voltages up to and including 0,6/1,0 kV required to maintaincircuit integrity when subjected to fire under specified conditions




    Main Features:
    1, All fixtures of Wire and Cable Fire Resistance Characteristics Test Equipment are made of stainless steel;
    2, The burner is a belt type propane blowtorch with a Venturi mixer, and the burner nozzle is length 500mm, width 15mm;
    3, Those burning holes are staggered into 3 rows, and the front width is 15mm, holes diameter is 1.32mm and these holes center distance is 3.2mm;
    5, One end of the specimen holder is equipped with a clamp to fix the sample, and the other end is convenient for heat transfer along the longitudinal specimen;
    6, The cable sample is supported by two metal rings, and the middle length of the two rings is about 300mm;
    7, An inner diameter of the sample supporting metal rings is 150mm, and the cross-sectional diameter of the ring is 10 ± 2mm.
    8, The position of the burner torch from burning the bottom is not less than 200mm, and not less than 300mm from the tank wall.




    Combustion System:
    1, Independent standard electrical control platform;
    2, With intelligent detection function, when a short circuit in the sample during the test, automatic alarm and turn off the fire source.
    3, Fuse current in the experimental circuit is 2A;
    4, The sample is applied to power of AV 100V ~ 1000V adjustable;
    5, The time can be set free for the fire, the time recommended by standards is 90min.




    Technical Specifications

    1 Power supply AC 380V 3-phase, 50 / 60Hz, 30A
    2 Overall dimension 1,600 (W) × 850 (D) × 1,650 (H) mm
    3 Console size 600 (W) × 750 (D) × 1,200 (H) mm
    4 Weight 300KG
    5 The input voltage 0 ~ 1000V; can be adjusted
    6 Maximum power 5000VA
    7 Timer 0 ~ 999min
    8 The flame temperature 0 ~ 1100 ºC adjustable
    9 The test load current 0.25A, can be adjusted

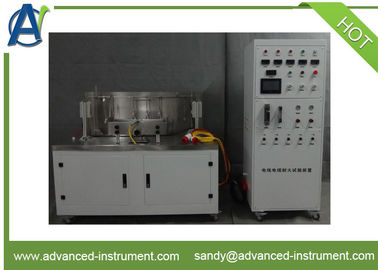

    Picture of Wire and Cable Fire Resistance Characteristics Test Equipment

    IEC 60331-11&21 Wire and Cable Fire Resistance Characteristics Test Equipment
