Place of Origin: | CHINA |
Brand Name: | AI |
Certification: | ISO |
Model Number: | AIC-6941 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | negotiable |
Packaging Details: | Plywood case |
Delivery Time: | 40 days |
Payment Terms: | Western Union, T/T, L/C |
Supply Ability: | 20 sets per month |
Test Standard: | ASTM F1955,CPAI 75 | Sample Size: | 560mm × 170mm |
---|---|---|---|
Gas Source: | Propane Or Butane | Warranty: | 1 Year |
Color: | White | Keyword: | Vertical Flame Spread Times Testing Equipment |

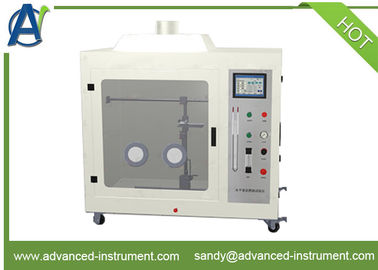

Introduction
This vertical flame spread times testing equipment is suitable for one-component or multi-component (coating, quilt, layered, laminated products, and similar combinations) of clothing, drapes, valance and large tents, including Arbor and cover textile vertical flame spread properties determination. For evaluation under controlled conditions in the laboratory of material or combination of materials properties when exposed to flame.
Main Features
1, Electric wire ignition.
2, Burner automatic timing and positioning.
3, The ignition timing from 0 to 99.99 seconds set arbitrarily. Continued burning time and smoldering time, flame spread times are automaticallyrecorded,digital display.
Technical Specifications
1, The ignition timing: 0 to 99.99 seconds set arbitrarily.
2, Continued burning time and smoldering time and flame spread timer: 0 ~ 99.99 seconds, accuracy: ± 0.01 seconds.
3, The flame height: 10~60mm adjustable.
4, The flame height measuring device: scale high 40mm.
5, Sample holder: high 560mm rectangular frame.
6, The use of gas: propane or butane gas industry.
7, Sample size: 560mm × 170mm.
