HV Resonance Test System for GIS, Power cable and Generator Insulation Testing

Product Details:

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	RTS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood case
Delivery Time:	15 days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Power Supply:	380V±10%, Three-phase 50Hz/60Hz	Max Voltage Output:	0~1000KV
Max Output Capacity:	0~6400KVA	Test Frequency Range:	30~300HZ
Warranty:	1 Year	Keyword:	HV Resonance Test System

HV Resonance Test System

Introduction

HV Resonance Test System is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the resonance test system is widely applied in GIS, Power cable and generator insulation testing.

Technial specifications

1	Max voltage output	0~1000KV
2	Max output Capacity	0~6400KVA
3	Test frequency range	30~300HZ
4	Frequency setting resolution	0.1HZ
5	Test voltage waveform	sine wave,waveform deviation factor : ≤1%
6	Power supply	380V±10%, three-phase 50Hz/60Hz
7	Environment condition	Temperature: 0~50℃
8	Humidity	≤ 80%RH

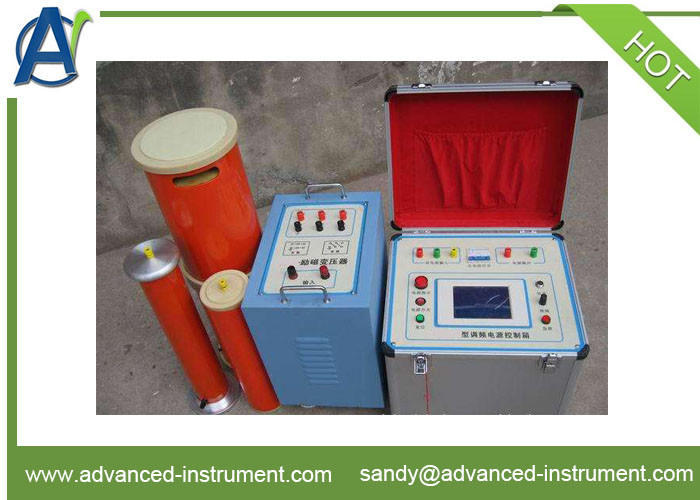

Photo of HV Resonance Test System

HV Resonance Test System for GIS, Power cable and Generator Insulation Testing
