Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620

Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620

    • Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620
    • Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620
    • Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620
    • Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620
  • Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620

    Product Details:

    Place of Origin: China
    Brand Name: AI
    Certification: ISO
    Model Number: DFT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 15 days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 100000 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: AC 220V±10% Display: LCD
    Keyword: Loss Tangent Meter,Power Factor Meter AC HV Output: 400V-2200V
    DC HV Output: 200V-600V Warranty: 1 Year
    Size: 450(L)×310(W)×360(H) Weight: 21KG



    Dielectric Oil Power Factor and Loss Tangent Meter





    I. Introduction:

    Automatic Dielectric Oil Power Factor and Loss Tangent Meter is a high-precision

    instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of
    insulating oil etc.
    This dielectric loss tangent meter is integrated with oil cup for dielectric loss, temperature-control equipment,
    temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor,
    high resistance meter and DC high-voltage power etc.
    The most advanced heating mode of high frequency induction is applied to the heating part of this dielectric oil power factor tester, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc. AC-DC-AC conversion mode is applied to AC trial electrical source so that the problem how to measure correctly under the fluctuation of voltage and frequency can be avoided. Even when the electric generator is working, the transformer oil volumn resistivity tester can operate correctly.
    The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and
    capacitance is not influenced by environmental temperature and dampness etc. In this way, the
    accuracy of insulation oil dielectric loss tangent meter is guaranteed conformably after a long-time application.





    II. Specifications:

    Condition of Use -5℃-40℃ RH<80%
    Power Source AC 220V±10% Without Frequency Limit
    AC High Voltage Output 400V-2200V ±2% Every 100V 50VA
    DC High Voltage Output 200V-600V ±2%
    Temperature Control Induction Stove Maximal Power 500W
    Temperature Control Range <100℃
    Temperature Measuring Error ±0.5℃
    Control Temperature Error 0.1℃
    Control Temperature Time Room Temperature 90℃ <20min

    Measuring Range

    tgδ Without Limit

    Cx 15PF-300PF

    Rx 10M-10T

    Resolution

    tgδ 0.001%

    Cx 0.01pF

    Rx 0.01

    Precision

    delta tgδ:±(Reading*0.5%+0.020%)

    delta Cx :±(Reading*0.5%+0.5PF)

    delta Rx :±Reading * 10%

    Relative Dielectric Loss Constant Εr Calculated Automatically
    Volume Resistivity ρ Calculated Automatically
    Dimension 450(L)×310(W)×360(H)
    Net Weight 21KG

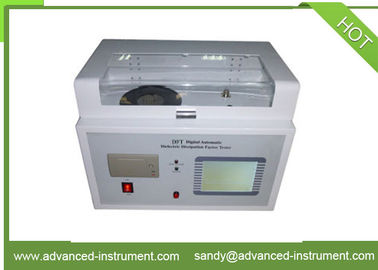

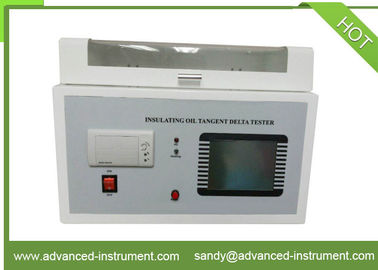

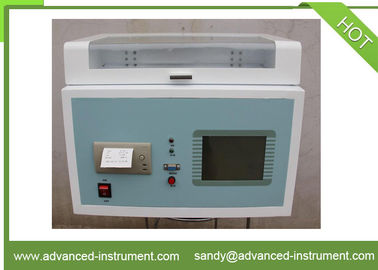

    Picture of Dielectric Oil Power Factor and Loss Tangent Meter

    Dielectric Oil Power Factor and Loss Tangent Meter as per IEC61620
