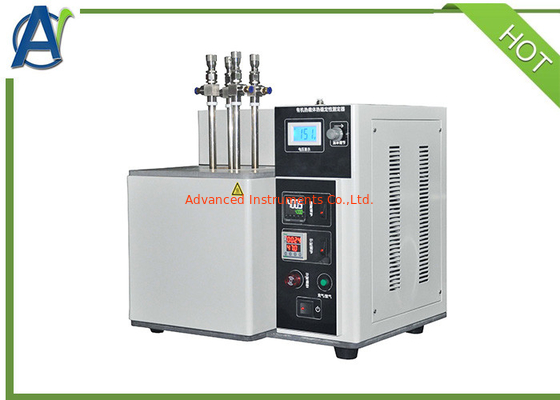

Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528

Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528

    • Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528
    • Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528
    • Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528
    • Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528
  • Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528

    Product Details:

    Place of Origin: China
    Brand Name: AI
    Certification: ISO
    Model Number: AIC-6743

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Hardboard
    Delivery Time: 30 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: AC220V /50HZ Temperature Controlling Range: RT~400ºC
    Test Standard: ASTM D6743,DIN 51528 Total Power: 1KW
    Working Positioin: 1~4 Units Temperature Controller: Omron
    Timing Method: Digital Timer Capacity Of Oxygen Bomb: 20ml
    Language: English OEM Service: Available

    Introduction:

    This Thermal Stability Test Equipment is suitable for testing the stability of Unused mineral oil and synthetic hydrocarbon heat transfer fluids.
    The use method is as follows: under a certain test temperature, heat the sample in isolation from the air for a specified time, then observe and record its appearance, calculate the quality of gas-phase decomposition products, conduct gas chromatographic analysis on the samples before and after heating, determine the content of low boiling and high boiling products generated by the samples through simulating the distillation curve, weigh a certain amount of heated samples, and determine the content of products that cannot evaporate in the ball tube distiller, Finally, the deterioration rate of the sample is calculated.





    Standards:
    • ASTM D6743-11(2015) Standard Test Method for Thermal Stability of Organic Heat Transfer Fluids;
    DIN 51528 Testing of mineral oils and related products - Determination of thermostability of unused heat transfer fluids.


    Features

    1. This Thermal Stability Test Equipment adopts environment friendly metal bath heating, high-efficiency thermal insulation effect;
    2. The Instrument has 1-4 test unit, temperature up to 400 ºC;
    3. Standard stainless steel experimental oxygen bomb with inlet valve and capacity of 20ml;
    4. The
    Thermal Stability Test Equipment provides inflation and deflation device, with pressure gauge display and needle valve adjustment.





    Parameters



    Applicable standard ASTM D6743, DIN 51528, SH/T0680, GB/T23971, GB/T23800
    Temperature control method imported PID digital temperature controller
    Tempearture control range RT~400ºC
    Temperature control accuracy ± 0.1ºC
    Heating method metal bath
    Total power 1KW
    Working position 1~4 units
    Working power AC220V ± 10% 50HZ
    Timing method digital timer



    Heat Transfer Fluids Thermal Stability Test Equipment by ASTM D6743 and DIN 51528
