35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location

35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location

    • 35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location
    • 35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location
    • 35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location
    • 35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location
  • 35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location

    Product Details:

    Place of Origin: China
    Brand Name: AI
    Certification: ISO
    Model Number: CFL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood case
    Delivery Time: 15 days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: AC220V±10%,45~65Hz Maximum Detect Distance: 30M
    Voltage Measuring Range: 0~35KV Keyword: Underground Cable Earth Fault Locator Instrument
    Warranty: 1 Year Size: 225*165*125mm
    Weighg: 2KG Power Consumption: 5VA

    35KV Underground Cable Earth Fault Locator





    I. Introduction:

    The normal operation of cable-communication and electric transport completely rely on the good condition of the cable-circuit. Once the circuit breaks down and without punctually examination and repairing, it will no doubt trigger the ass economic loss and bad social influence. So the electric fault measuring instrument is a very important tool.

    This cable fault location instrument uses multiple testing methods and adopts the most advanced electronic devices and with computer and special electronic technology, combining our company’s successful experience of long-time exploitation on cable-fault measuring instruments, and it is absolutely of high tech, intelligence and abundant functions.
    Our cable fault locator is a testing device of good integrity. It can test on the High Resistance Flashover Fault, Grounding High and Low Resistance Fault, Short & Off Circuit on the Cable Fault and Poor contact and etc. If being equipped with sounding method and locating instrument, it can exactly detect the fault point. Furthermore, it especially applies for testingvarious power cable and communication cable.





    II. Functions

    1 Maximum detect distance 30km
    2 Detect resolution 1m
    3 Power supply of cable fault locator AC220V±10%,45~65Hz(it also has battery inbuilt)
    4 Sample rate of impulse signal 100MHz
    5 Voltage series of cable

    low voltage power cable(0~1kV),

    high voltage power cable(1kv~35kv),

    communication cable

    6 Fault type can be detected

    Disconnection of power cable,

    low insulation of power cable( High voltage impulse generator is required),

    low resistance and high resistance connected to earth ,

    poor contact of connectors

    7 Storage 100 groups record
    8 Power consumption 5VA
    9 Voltage divider ratio 100:1
    10 Size 225*165*125mm
    11 Weight 2KG
    12 Working temperature 0~50℃

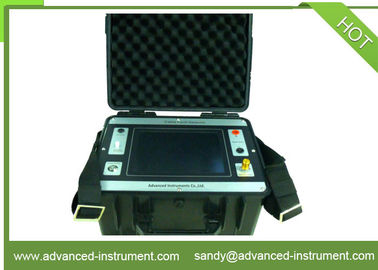

    Photo of 35KV Underground Cable Earth Fault Locator Instrument

    35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location35KV Underground Cable Earth Fault Locator Instrument for Cable Fault Location
