ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester

Product Details:

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	BDV-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	15 days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100000 sets per month

Contact Now

Detailed Product Description

Power Supply:	AC220V±10%, 50Hz/60Hz	Display:	LCD
Test Standard:	IEC60156/IS6792/BS5874/ASTM D1866/ASTM D877	Voltage Output:	AC 0V~100KV
Size:	620 Mm430mm330mm	Weight:	41kg
Keyword:	Insulation Oil Dielectric Strength Tester

ASTM D877 D1816 Insulation Oil Dielectric Strength BDV Tester

I. Introduction:

BDV-1 insulation oil dielectric strength tester is designed according to the national standard IEC156 Transformer Oil Dielectric Strength Test Method;

This insulating oil withstand voltage test equipment has large LCD display, micro-printer and can store 100 groups data;

This insulation oil breakdown voltage test set is multi-functional, stable, and easy for operation;

II. Functions:

Breakdown test of user-defined;
Proof test;
IEC60156/IS6792/BS5874 test;
ASTM D1816 standard test;
ASTM D877 standard test;
5 minutes standard test;
Manual test;
Calibration interface for customers;
This transformer oil tester can upload data to PC and making word report automatically;
Result can be printed by insulation oil tester;

III.Specifications:

Output voltage	AC 0V~100KV
Rate of voltage rise	0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
Max test times setting for user-defined mode	9
Stir time setting for user-defined mode	0~999s
Waiting time setting for user-defined mode	0~999s
Test error	3%RDG+0.3%FS
Display	256´128 LCD
Maximum storage capacity	100 groups of test data
Power supply	AC220V±10%, 50Hz/60Hz
Working environment	0-50℃, ≤80%RH
Size	620 mm430mm330mm
Weight	41kg

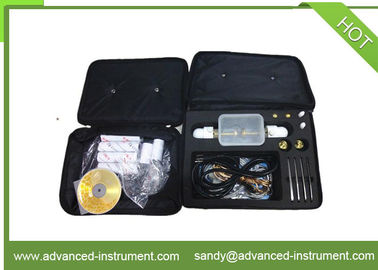

Picture of BDV-1 Insulation Oil Dielectric Strength Tester

ASTM D877 D1816 Test Instrument Insulation Oil Dielectric Strength Tester
