Insulation Oil Dielectric Dissipation Factor Volume Resistivity Tester
I. Introduction:
Automatic Dielectric Dissipation Factor Tester is a high-precision
instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of
insulating oil etc.
This oil tan delta analyzer is integrated with oil cup for dielectric loss, temperature-control equipment,
temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor,
high resistance meter and DC high-voltage power etc.
The most advanced heating mode of high frequency induction is applied to the heating part of this iinsulation oil dissipation factor tester, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc. AC-DC-AC conversion mode is applied to AC trial electrical source so that the problem how to measure correctly under the fluctuation of voltage and frequency can be avoided. Even when the electric generator is working, the transformer oil volumn resistivity tester can operate correctly.
The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and
capacitance is not influenced by environmental temperature and dampness etc. In this way, the
accuracy of insulation oil dielectric loss tester is guaranteed conformably after a long-time application.
II. Specifications:
| Condition of Use |
-5℃-40℃ RH<80% |
| Power Source |
AC 220V±10% Without Frequency Limit |
| AC High Voltage Output |
400V-2200V ±2% Every 100V 50VA |
| DC High Voltage Output |
200V-600V ±2% |
| Temperature Control Induction Stove |
Maximal Power 500W |
| Temperature Control Range |
<100℃ |
| Temperature Measuring Error |
±0.5℃ |
| Control Temperature Error |
0.1℃ |
| Control Temperature Time |
Room Temperature 90℃ <20min |
Measuring Range |
tgδ Without Limit
Cx 15PF-300PF
Rx 10M-10T
|
| Resolution |
tgδ 0.001%
Cx 0.01pF
Rx 0.01
|
| Precision |
delta tgδ:±(Reading*0.5%+0.020%)
delta Cx :±(Reading*0.5%+0.5PF)
delta Rx :±Reading * 10%
|
| Relative Dielectric Loss Constant |
Εr Calculated Automatically |
| Volume Resistivity |
ρ Calculated Automatically |
| Dimension |
450(L)×310(W)×360(H) |
| Net Weight |
21KG
|

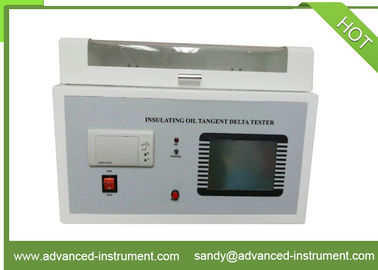

Picture of Dielectric Dissipation Factor Volume Resistivity Meter
