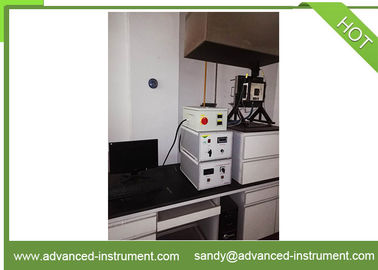

BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
    • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material
  • BS 476-6 Fire Propagation Index Tester for Flame Spread Test of Building Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: AI
    Certification: ISO
    Model Number: FPT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: negotiable
    Packaging Details: Plywood case
    Delivery Time: 60 days
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Test Standard: BS476-6 Fire Propagation Index Test Gas Supplies: G112, As Specified In BS 4947
    Weight: 46KG Warranty: 1 Year
    Color: White Power Supply: 230 Volts Nominal 10 Amps

    BS 476-6 Fire Propagation Index Tester

    INTRODUCTION

    BS 476 part 6 specifies a method of test, the result being expressed as a fire propagation index, that provides a comparative measure of the contribution to the growth of fire made by an essentially flat material, composite or assembly. It is primarily intended for the assessment of the performance of internal wall and ceiling linings.​





    FEATURE

    • Stainless steel support frame andCalcium silicate board combustion chamber.

    • Three kinds of sample holders for different thickness of the specimens.

    • Low reflective black finished mild steel Chimney and Cowl assembly complete with thermocouple mounting points.

    • Compliant stainless steel gas burner.

    • Two K type mineral insulated thermocouples complete with ceramic insulators.

    • Two pencil type heaters with 1000w installed in combustion chamber.

    • Control gas instrumentation including electronic gas on/off valve, flow regulating valve, flow meter and manometer.

    • Intelligent single phase power controller with feedback loop for accurate control of electric heating elements

    • DAQ record automatically the mV output from the thermocouples of the flue gases throughout the duration of the test.

    • According to the test time, automatically adjust the output power.

    Data Acquisition system:

    • Prompted software interface

    • Data recording and display of cowl temperature against time

    • Data recording and display of ambient temperature against time

    • Display of power value in kW

    • Calibration routine

    • Calculation of output rise and calibration value

    Installation requirements

    Electrical 230 volts Nominal 10 Amps
    Ambient Temperature 10°C to 35°C
    Gas supplies The gas supply specified in the Standard is Standard test gas G112, as specified in BS 4947
    Flow Gas flow for burner adjustable from 0 to 5 nl/min
    Pressure 1KPa
    Dimensions

    Apparatus: 400mm (W) x 600mm x (H) x 300mm (D)

    Control module: 400mm (W) x 500mm x (H) x 400mm (D)

    Weight 46KG
    Applicable standards BS476-6
