Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer

Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer

    • Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer
    • Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer
    • Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer
    • Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer
  • Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer

    Product Details:

    Place of Origin: China
    Brand Name: AI
    Certification: ISO
    Model Number: EDX6000B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 20 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Keyword: X-ray Fluorescence Spectrometer Measuring Element: Na To U
    Range Of Element Content: 1ppm-99.99% Ability Of Simultaneous Analysis: 24 Elements
    Measurement Time: 60-200s Power Supply: AC 110V/220V
    Warranty: 1 Year

    Energy Dispersive X-ray Fluorescence Spectrometer



    EDXRF Spectrometer's Introduction

    EDX6000B is newly developed for cement and mineral industries with in-built movable table. It can test several samples simultaneously through easy and simple operation.





    Application fields

    Cement
    Ferrous and non-ferrous metals
    Aggregate
    RoHS testing





    Energy Dispersive X-ray Fluorescence Spectrometer's characteristics

    • Deliver professional full-element analysis of cement, steel, minerals, plating thickness and hazardous substances(RoHS).
    • Electric-cooling UHRD detector instead of liquid nitrogen cooling detector
    • In-built SNE improves the signal processing ability up to 25 times.
    • Vacuum sample chamber, good for analyzing low content light elements
    • The collimators and filters can be switched automatically for different samples.
    • Arbitrary optional analysis and identification models
    • Independent matrix effect correction models
    • Multi-variable non-linear regression procedure
    • Intelligent full-element analysis software matches with the hardware well
    • The lower detection limit of hazardous elements(Cd/Pb/Cr/Hg/Br)in RoHS directive reaches 1ppm.



    Technical specifications

    1 Measurable elements Na to U
    2 Range of element content 1ppm-99.99%
    3 Ability of simultaneous analysis 24 elements
    4 Plating thickness 0.05%(above 96%)
    5 Analysis accuracy 0.05%(above 96%)
    6 Forms of samples powder, solid and liquid
    7 Measurement time 60-200s
    8 Ambient Temperature 15-30℃
    9 Ambient Humidity ≤70%
    10 Working voltage AC 110V/220V





    Standard configurations of XRF Metal Elements Analyzer

    • High efficient ultra thin end window X-ray tube
    • Electric-cooling UHRD detector
    • Signal-to-Noise Enhancer (SNE)
    • In-built high resolution CCD
    • Light path enhancement system
    • Automatic collimator and filter switch
    • Enhanced metal sensitivity analyzer

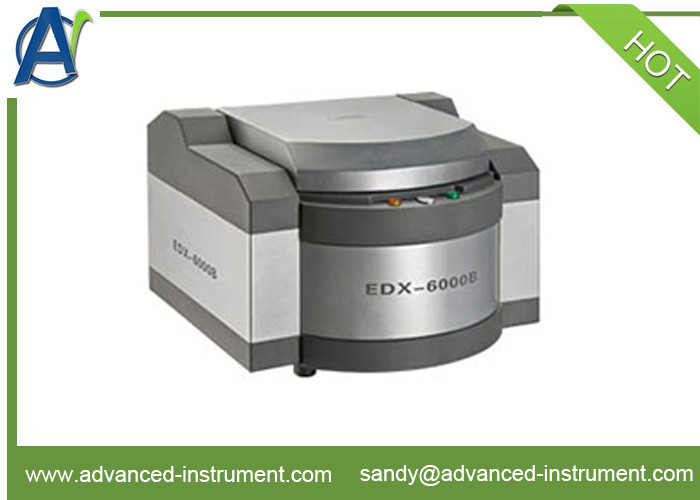

    Photo of EDX6000B Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer

    Energy Dispersive X-ray Fluorescence Metal Elements Analysis Spectrometer
