China AC Hipot Testesting Equipment with Oil Filled HV Transformer

Product Details:

Place of Origin:	China
Brand Name:	AI
Certification:	ISO
Model Number:	HPT

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	15 days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100000 sets per month

Contact Now

Detailed Product Description

Power Supply:	AC220V±10%, 50Hz/60Hz	Display:	Digital
Voltage Output:	50kv/100kv/150kv/200kv/250kv	Output Capacity:	3kva/5kva/10kva/20kva/30kva/50kva/100kva/150kva/200kva
Warranty:	1 Year	Keyword:	AC Hipot Testing

AC Hipot Testesting Equipment

I. Introduction:

Oil Immersed Test Transformer AC Hipot Testing Equipment is applied in power system for insulation test of high voltage equipment.

The typical application of the HIPOT testing equipment is as follow:

Power Transformer AC high voltage withstand test
Circuit Breaker AC high voltage withstand test
High voltage motors high voltage withstand test
Voltage/current transformer high voltage withstand test
High voltage power source for calibration of high voltage meter

II. Specifications:

Please confirm the right model before order. The main parameters include input voltage, maximum output voltage and capacity.
The parameters in this table are response for HV test transformer only and we will match the main control box according to the capacity and input voltage you need.

Model	Max output capacity (KVA)	Max high voltage output (KV)	Max current in hv circuit (MA)	Voltage current input of voltage booster(V)	Voltage current input of voltage booster (A)	Ratio
HPT-5/50	5	50	100	200	25	500
HPT-10/50	10	50	200	220/380	50/26	500
HPT-20/50	20	50	400	380	53	500
HPT -30/50	30	50	600	380	79	500
HPT-40/50	40	50	800	380	105	500
HPT -50/50	50	50	1000	380	132	500
HPT -5/100	5	100	50	200	25	1000
HPT -10/100	10	100	100	200/380	50/26	1000
HPT-20/100	20	100	200	380	53	1000
HPT-30/100	30	100	300	380	79	1000
HPT -40/100	40	100	400	380	105	1000
HPT-50/100	50	100	500	380	132	1000
HPT -100/100	100	100	100	500	263	1000
HPT -150/100	150	100	1500	500	300	1000

Note:The capacity and maximum voltage output could be customized according to the requirements if you can not find the right one in this table;

The weight listed in the table is HV transformer only,and it does not include the weight of main control box. Please confirm the total weight of AC or AD/DC hipot test set with our sales before order.

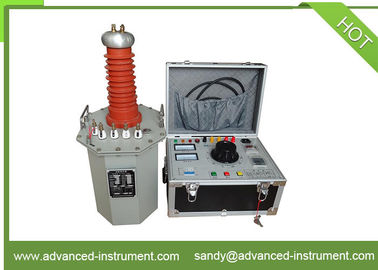

Picture of AC Hipot Testesting Equipment

China AC Hipot Testesting Equipment with Oil Filled HV Transformer
